E07xESP32C5
by b1scuitdev

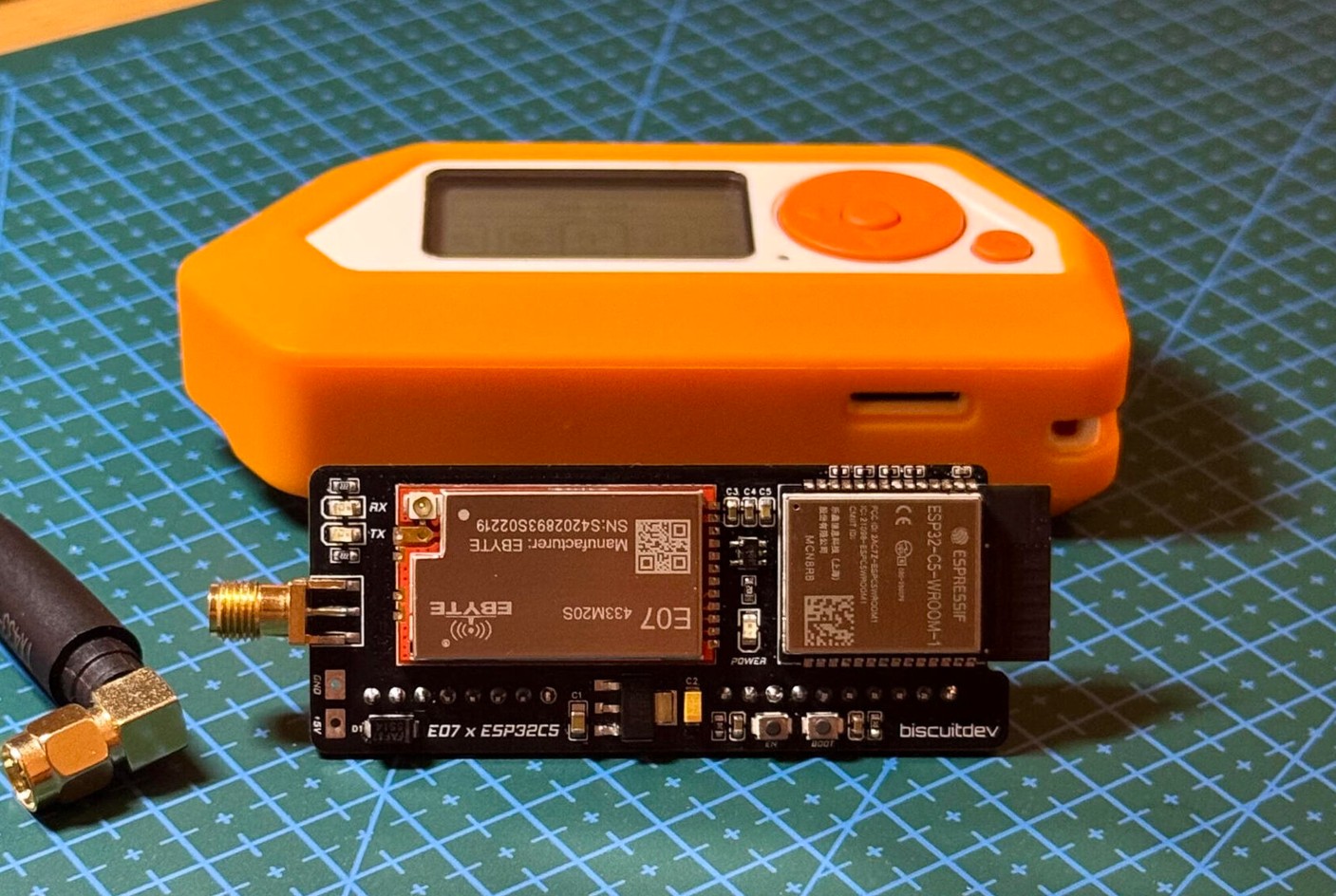

E07xESP32C5 is a wireless board published by b1scuitdev, with public EasyEDA design files on GitHub. Check the repository terms before reuse. The author describes it as: “E07xESP32C5 is a Sub-GHz & ESP32-C5 module for Flipper Zero. It includes an EBYTE E07-433M20S (PA+LNA), microSD slot, UART pads for GPS, 5V output and a 4-layer PCB with solid ground planes for RF performance.”
29 people have starred it and 6 have forked it, with the last commit 2 months ago.
What’s in the repository
- EasyEDA project source files
- Full revision history, so you can see how the board changed between versions
Licence and reuse
The project ships its own license terms rather than a standard SPDX license. Open the license file in the repository and read it before you reuse the files — custom hardware licenses often restrict commercial manufacture.
Opening it in ProtoFlow
The design was drawn in EasyEDA. EasyEDA can export to KiCad format, which is the route into ProtoFlow or any KiCad-based workflow.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit b1scuitdev if you publish or sell what you build from it.
