Heard

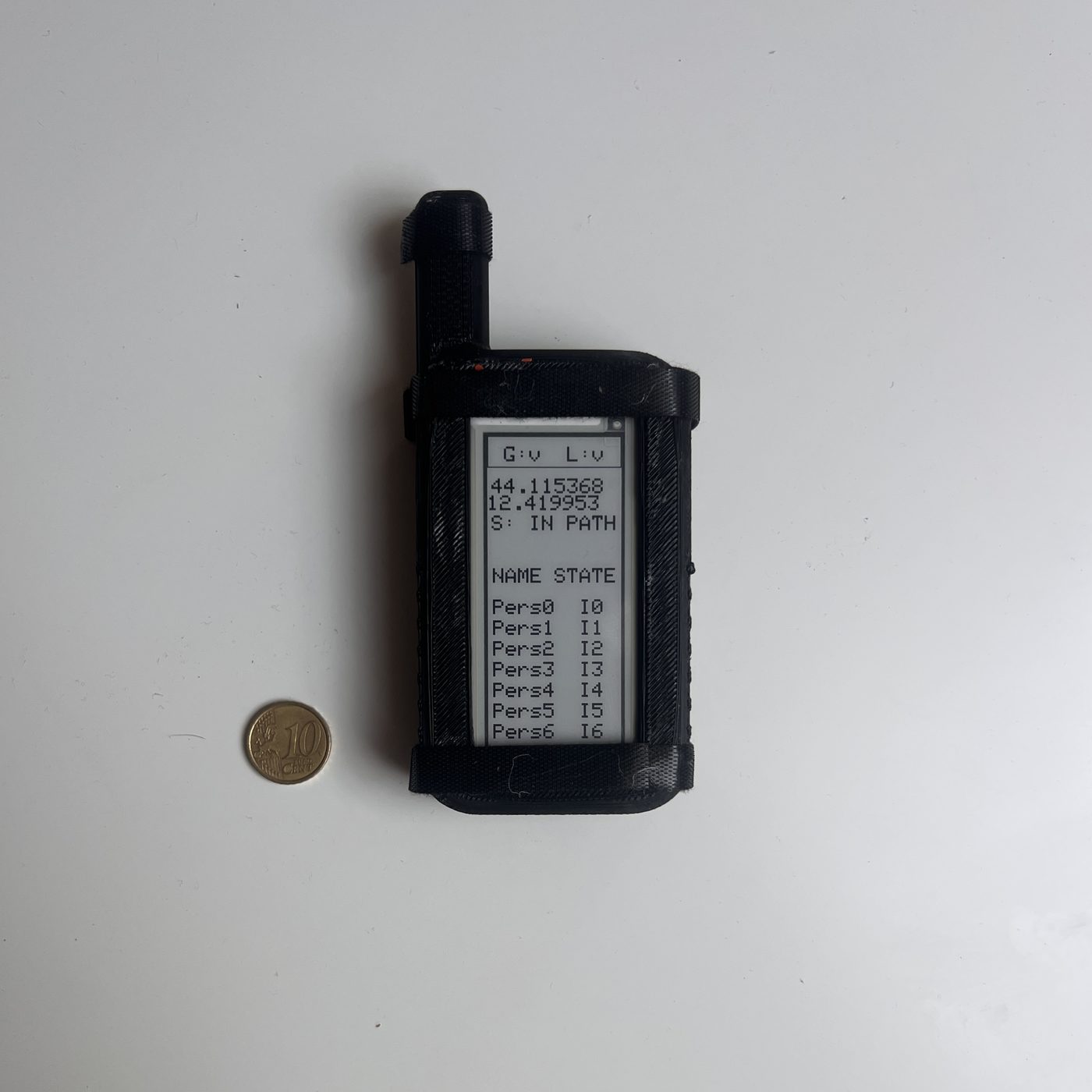

Built by luciobaiocchi, Heard is an open hardware wireless board released with its design files intact. In the maintainer's words: “Offline group-safety mesh for hikers: ESP32 + GPS + LoRa, with a firmware-in-the-loop simulator and 3D replay viewer.”
It has 89 stars and 8 forks on GitHub, with the last commit 2 months ago.
What’s in the repository
- Schematic and board source files published by the author
- A project site with further documentation
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under Apache-2.0, one of the permissive licenses. You can fork the design, change it, manufacture it and sell the result, provided you keep the original copyright and license notice with the files.
Opening it in ProtoFlow
The repository does not clearly state which EDA tool produced the files — check the repository contents before planning an import.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit luciobaiocchi if you publish or sell what you build from it.
