waffling60
by 4pplet

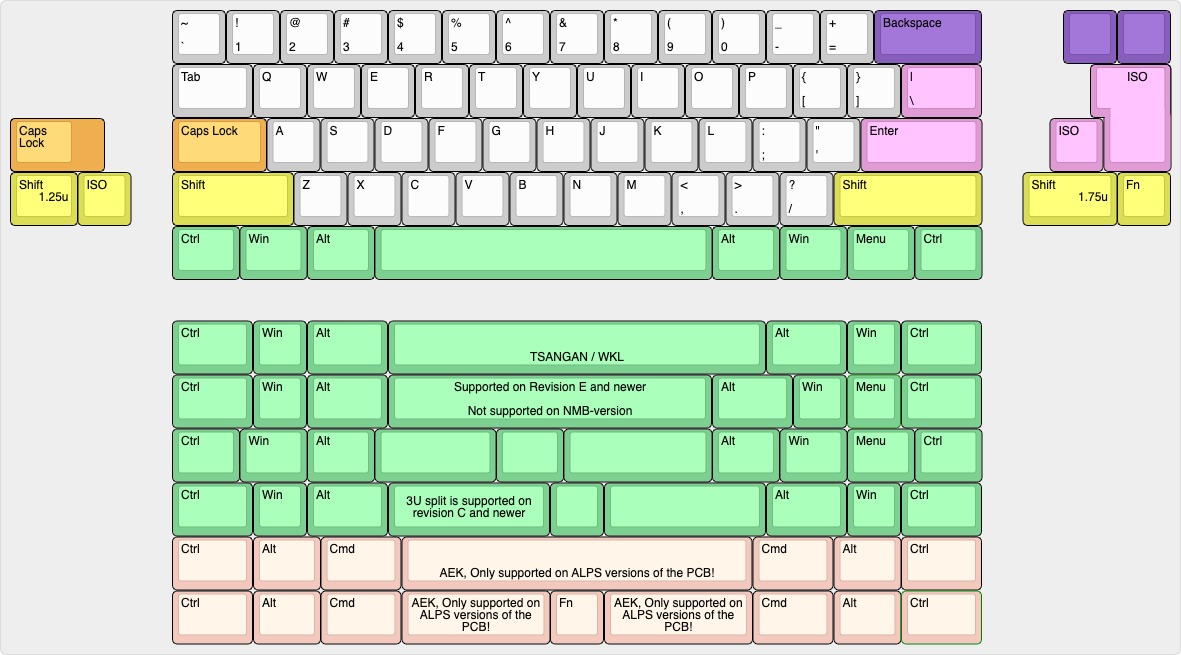

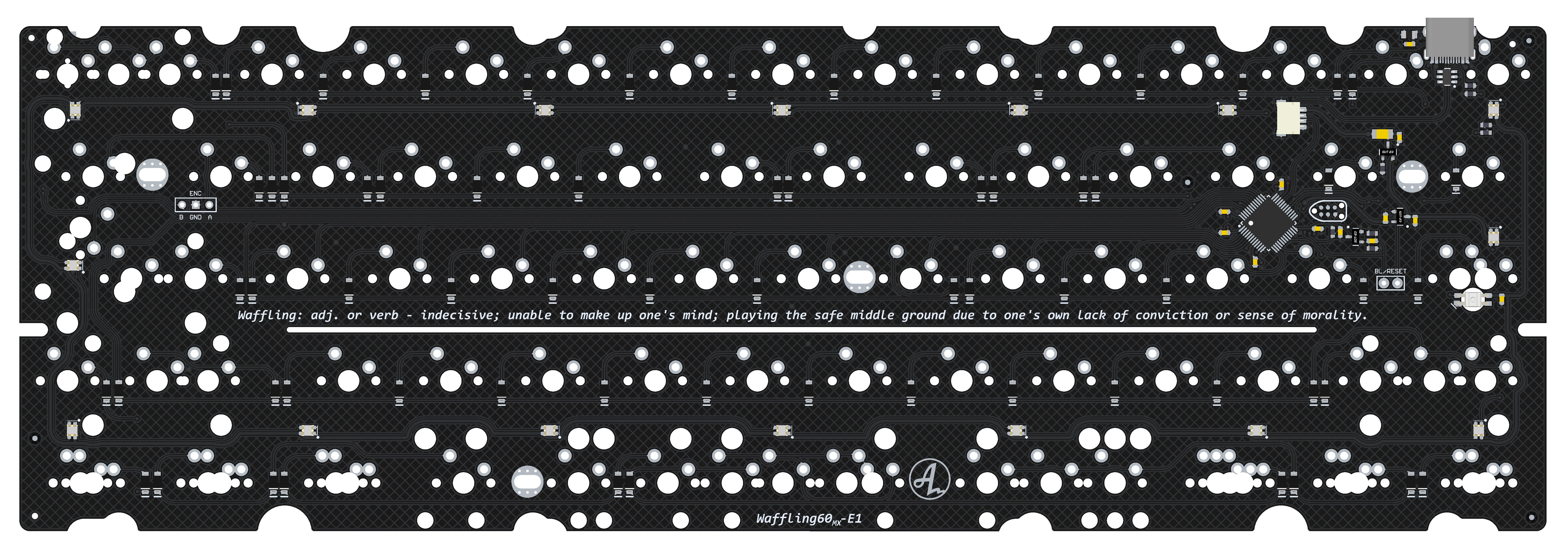

waffling60 is a input device published by 4pplet, with public Altium design files on GitHub. Check the repository terms before reuse. The author describes it as: “Multi layout 60% PCB with support for common ANSI and ISO layouts and split space. SE-version is for use in Polaris, DB-version for use in Bakeneko/Kei.”
99 people have starred it and 16 have forked it, with the last commit 2 years ago.
What’s in the repository
- Altium project source files
- Full revision history, so you can see how the board changed between versions
Licence and reuse
The project ships its own license terms rather than a standard SPDX license. Open the license file in the repository and read it before you reuse the files — custom hardware licenses often restrict commercial manufacture.
