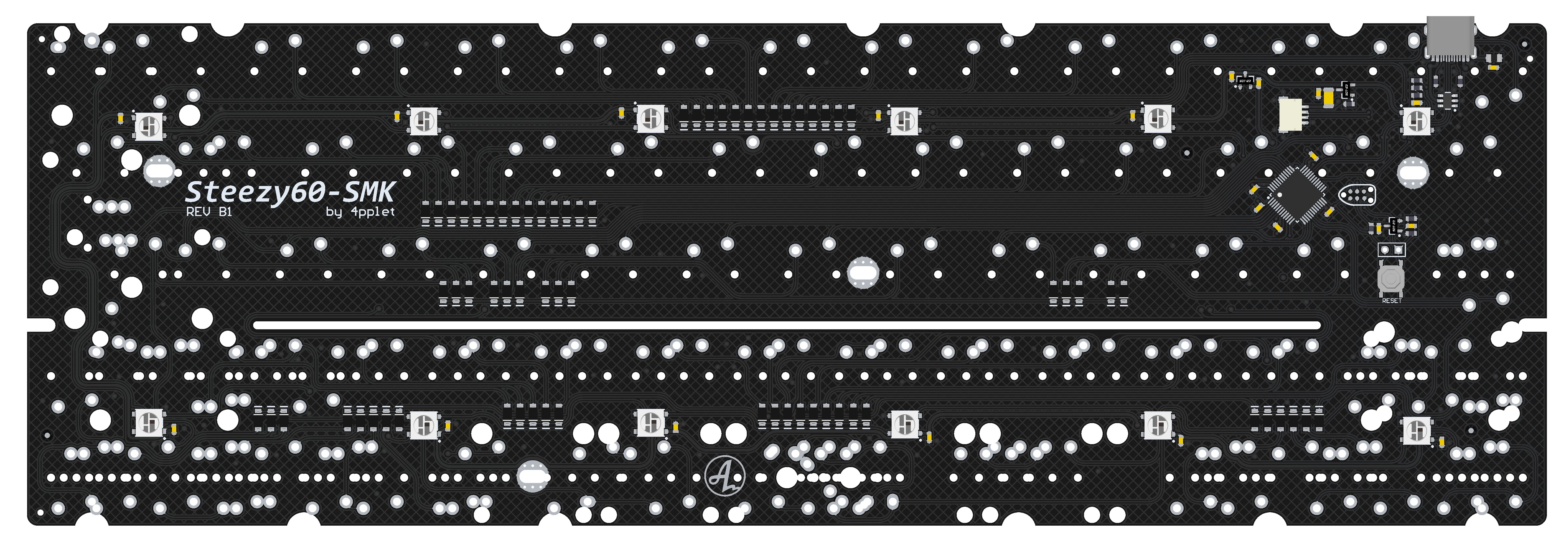

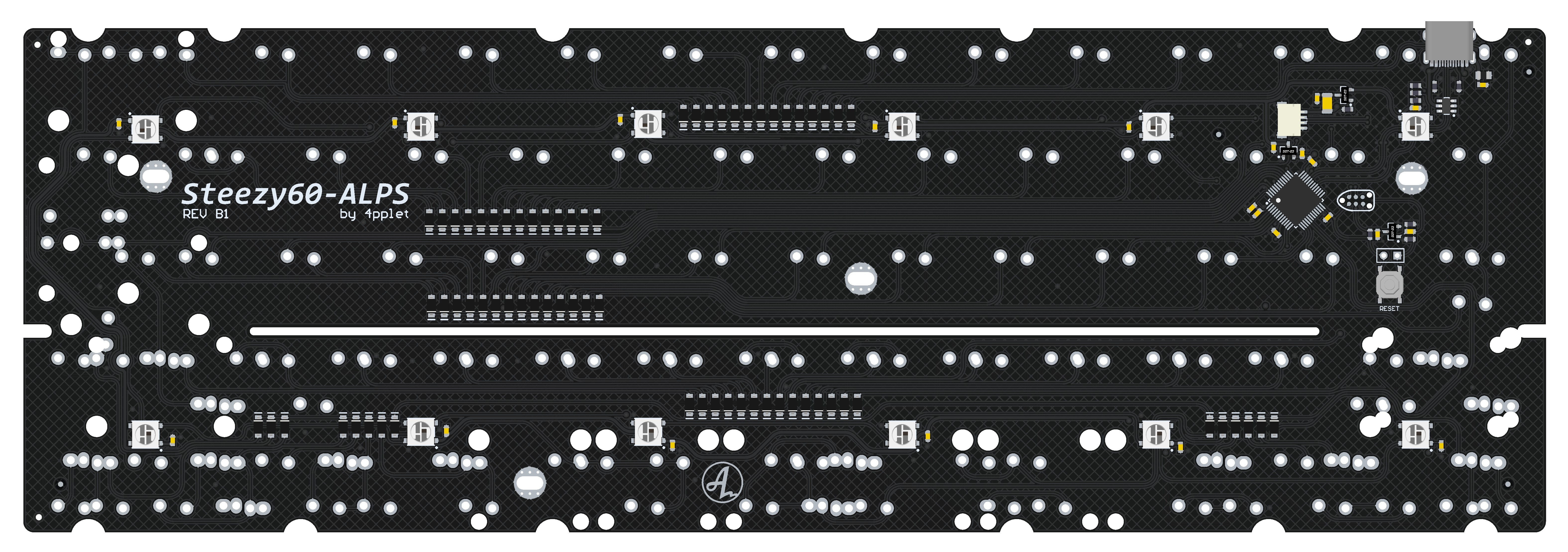

Steezy60 is a input device published by 4pplet, with public Altium design files on GitHub. Check the repository terms before reuse. In the maintainer's words: “Steezy60 is a 60% PCB in two versions: one for SMK gen 2 switches one for ALPS-compatible switches. Compatible with standard tray-mount cases. BIG layout compatibility.”
It has 30 stars and 5 forks on GitHub, with the last commit about a year ago.
What’s in the repository
- Altium project source files
- Full revision history, so you can see how the board changed between versions
Licence and reuse
The project ships its own license terms rather than a standard SPDX license. Open the license file in the repository and read it before you reuse the files — custom hardware licenses often restrict commercial manufacture.
Opening it in ProtoFlow
The design was drawn in Altium Designer. Altium projects need converting before they open in KiCad-compatible tools, so expect to check footprints and layer mapping after any import.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit 4pplet if you publish or sell what you build from it.
This page indexes a public repository. The design, the files and the copyright belong to 4pplet; ProtoFlow does not host, mirror or verify them. Details are read from GitHub and refreshed periodically — check the repository for the current state of the project.
