RadioShield
by jgromes

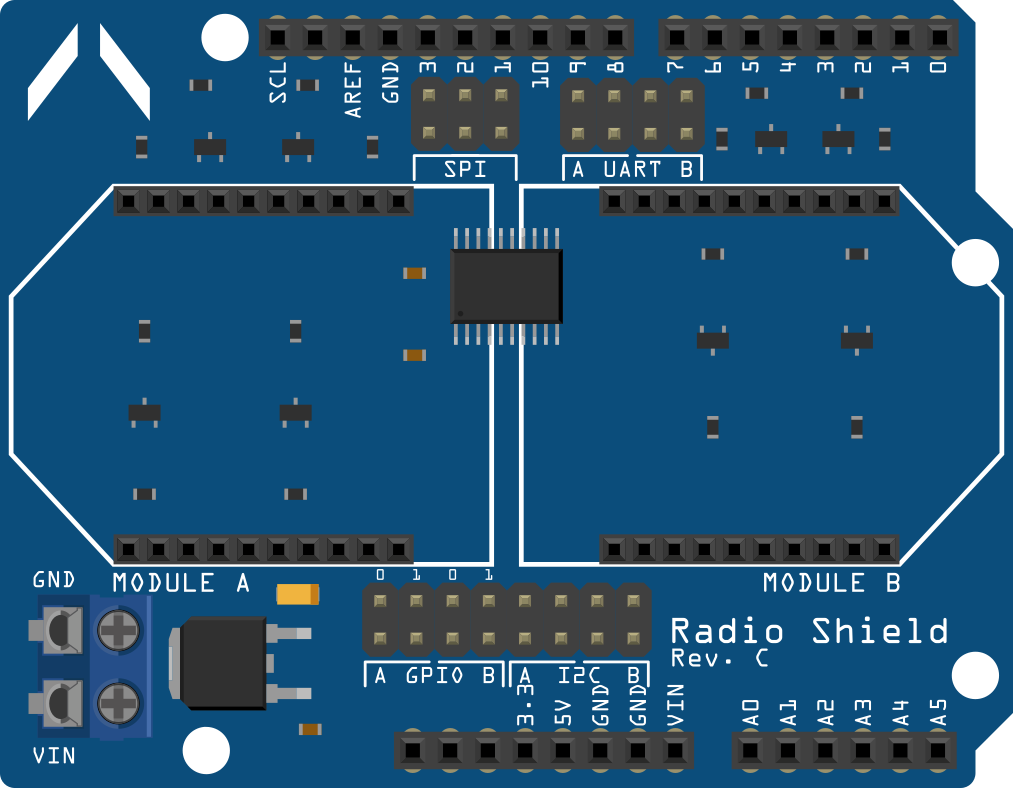

RadioShield is a wireless board published by jgromes, with public EAGLE design files on GitHub. Check the repository terms before reuse. In the maintainer's words: “Universal wireless communication shield for Arduino.”
It has 68 stars and 10 forks on GitHub, with the last commit 7 years ago.
What’s in the repository
- EAGLE schematic (.sch) and board (.brd) source files
- Full revision history, so you can see how the board changed between versions
Licence and reuse
The project ships its own license terms rather than a standard SPDX license. Open the license file in the repository and read it before you reuse the files — custom hardware licenses often restrict commercial manufacture.
