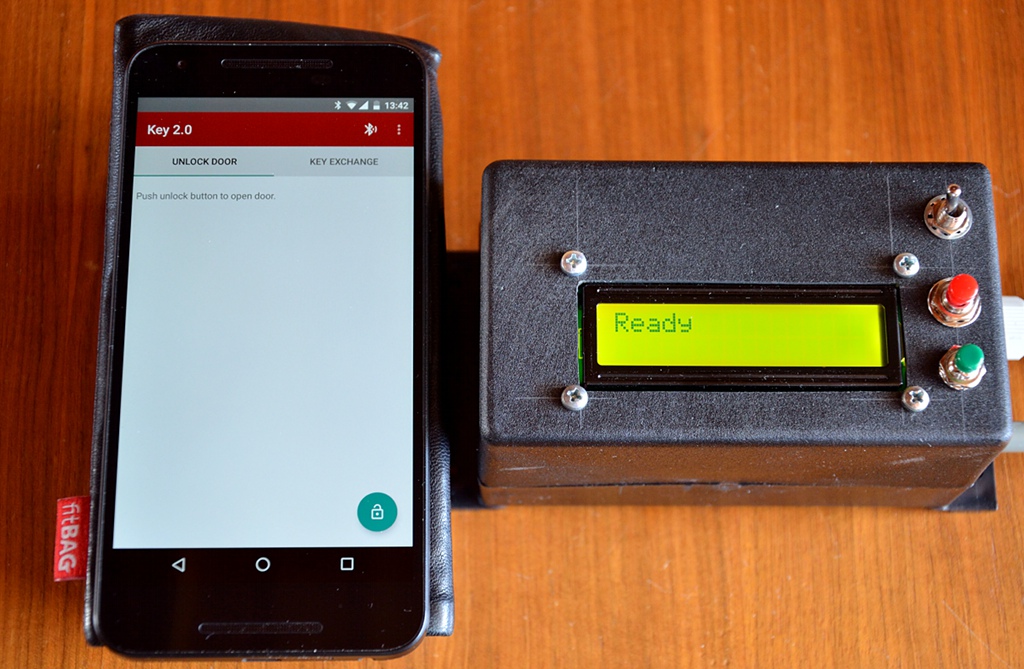

key20 is a wireless board published by duerrfk, with public EAGLE design files on GitHub. Check the repository terms before reuse. In the maintainer's words: “Key 2.0 is a Bluetooth IoT Door Lock. It turns a conventional electric door lock into a smart door lock that can be opened using a smartphone without the need for a physical key. Thus, Key20 is the modern version of a physical key, or, as the name suggests, the key version 2.0 for the Internet of Things (IoT) era.”
It has 90 stars and 34 forks on GitHub, with the last commit 9 years ago.
What’s in the repository
- EAGLE schematic (.sch) and board (.brd) source files
- Full revision history, so you can see how the board changed between versions
Licence and reuse
The project ships its own license terms rather than a standard SPDX license. Open the license file in the repository and read it before you reuse the files — custom hardware licenses often restrict commercial manufacture.
