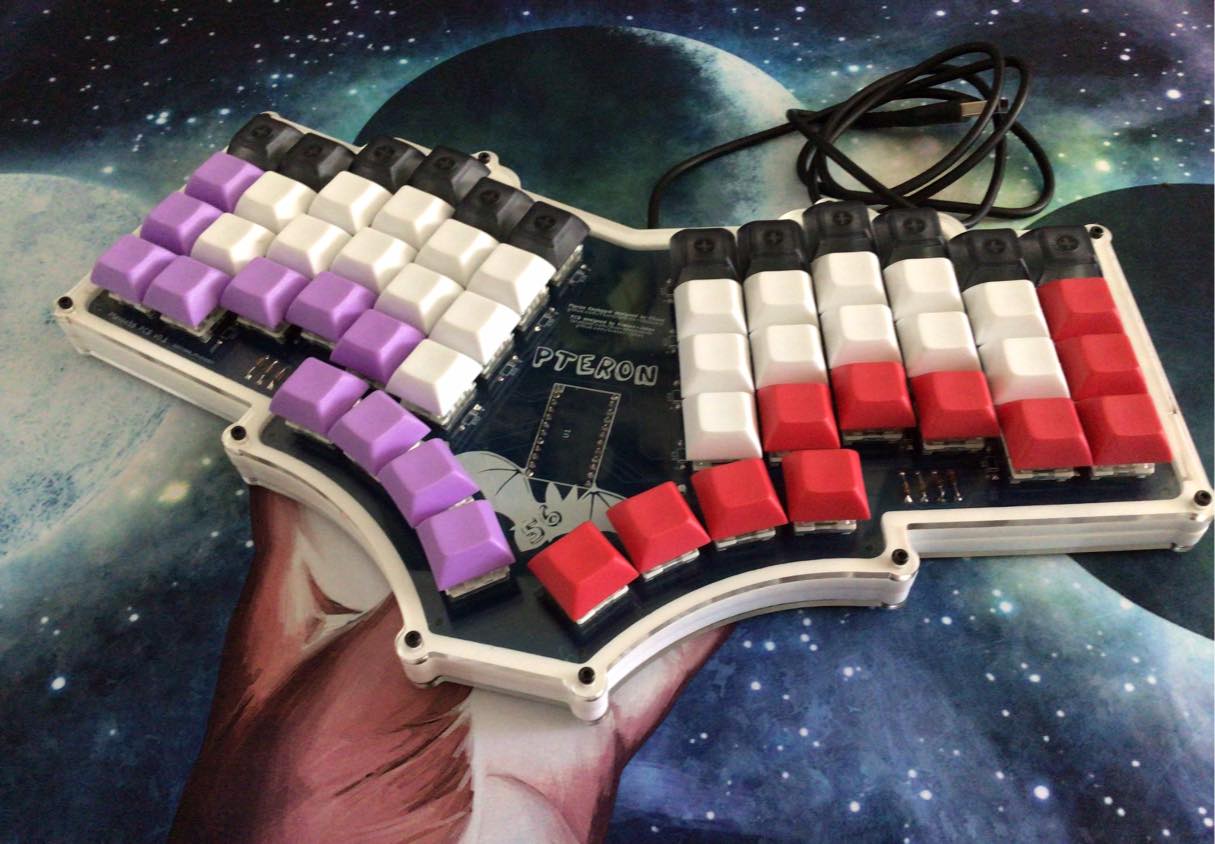

Pteron Pcb is a community-built input device. Kraken-Jokes publishes the full project on GitHub for anyone to study or build. The project summarises itself as “A continuation of FSund's pteron-keyboard project. Feel free to contribute, or use these files to make your own! Kits and PCBs are also available through my facebook page.”
The repository has collected 30 stars and been forked 13 times, with the last commit 5 years ago.
What’s in the repository
- Schematic and board source files published by the author
- A project site with further documentation
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under GPL-3.0, a copyleft license. You are free to fork and modify the design, but anything you distribute that is derived from it has to be published under the same terms — worth checking before it goes into a closed product.
Opening it in ProtoFlow
The repository does not clearly state which EDA tool produced the files — check the repository contents before planning an import.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit Kraken-Jokes if you publish or sell what you build from it.
