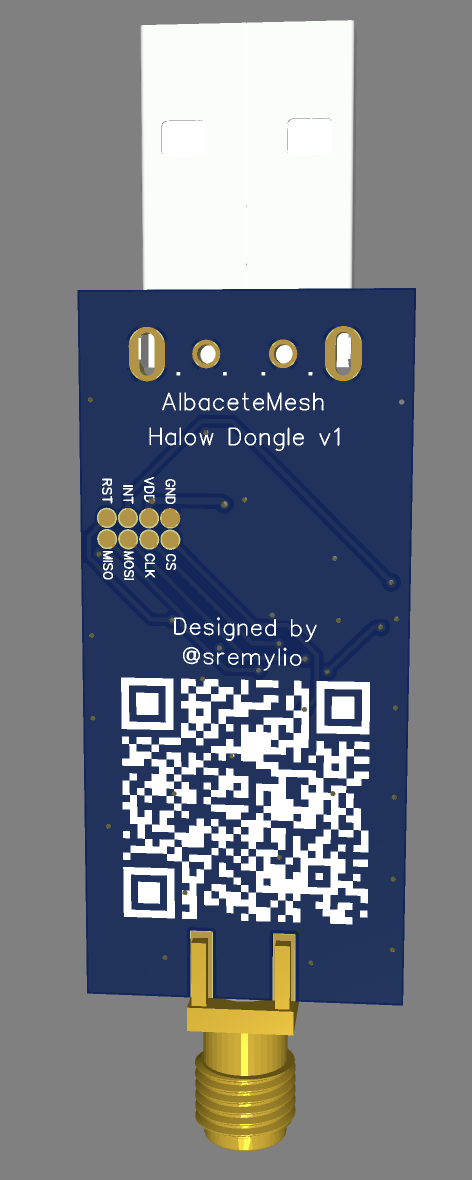

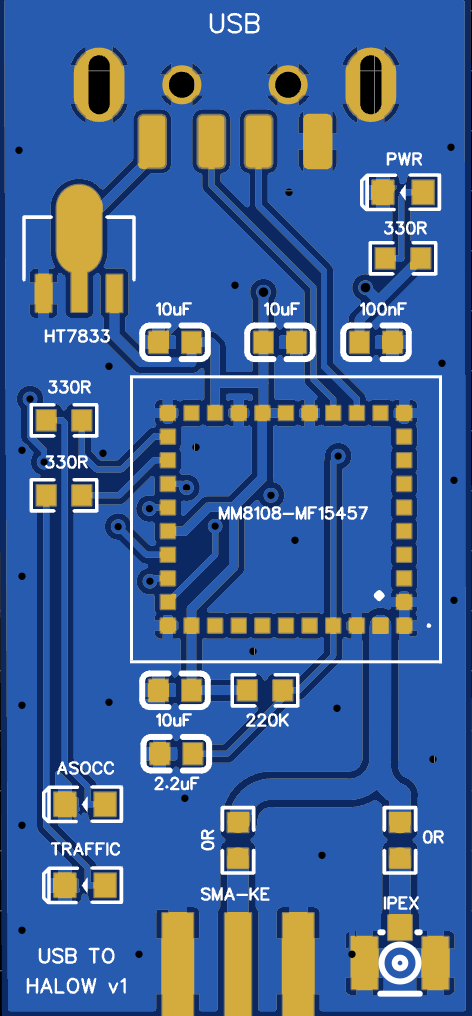

MM8108 WiFi HaLow USB Adapter is a wireless board published by EmilioAL-Git, with public design files on GitHub. Check the repository terms before reuse. The author describes it as: “Open-source USB to WiFi HaLow (IEEE 802.11ah) adapter based on Morse Micro MM8108-MF15457 module.”
14 people have starred it and 4 have forked it, with the last commit 6 months ago.
What’s in the repository
- Schematic and board source files published by the author
- Full revision history, so you can see how the board changed between versions
Licence and reuse
No license is declared on the repository. Publishing files publicly is not the same as granting permission to reuse them, so ask the author before you build on this design.
Opening it in ProtoFlow
The repository does not clearly state which EDA tool produced the files — check the repository contents before planning an import.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit EmilioAL-Git if you publish or sell what you build from it.
