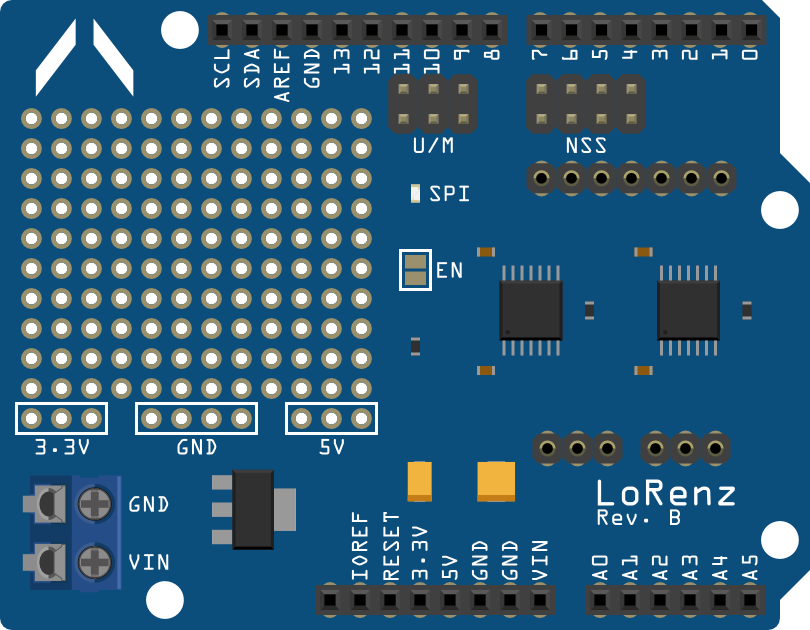

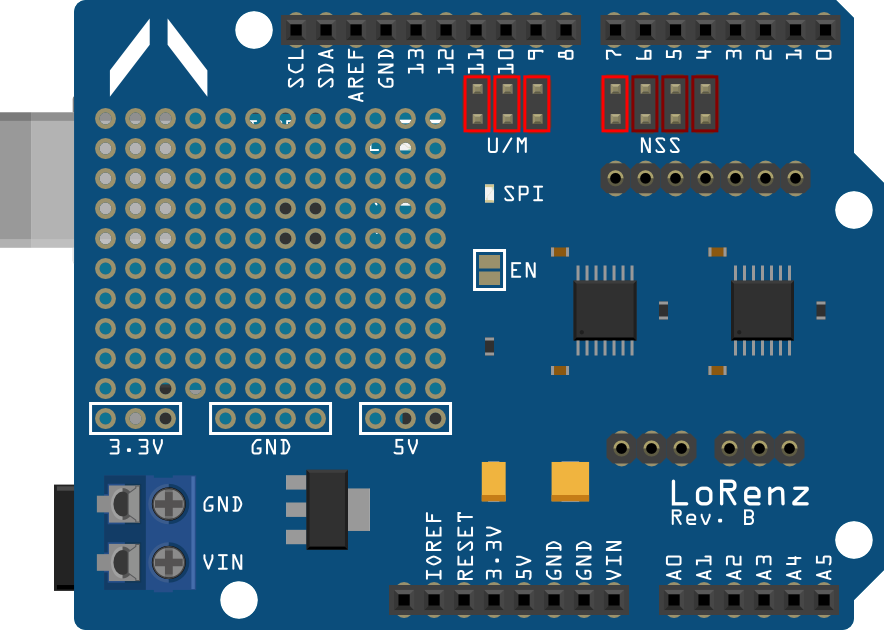

LoRenz is a community-built wireless board. jgromes publishes the full EAGLE project on GitHub for anyone to study or build. The project summarises itself as “Arduino shield for various LoRa communication modules.”
The repository has collected 15 stars and been forked 2 times, with the last commit 9 years ago.
What’s in the repository
- EAGLE schematic (.sch) and board (.brd) source files
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under MIT, one of the permissive licenses. You can fork the design, change it, manufacture it and sell the result, provided you keep the original copyright and license notice with the files.
Opening it in ProtoFlow
The design was drawn in EAGLE. EAGLE schematic and board files convert into KiCad format, which is the path to take if you want to carry this design into ProtoFlow.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit jgromes if you publish or sell what you build from it.
