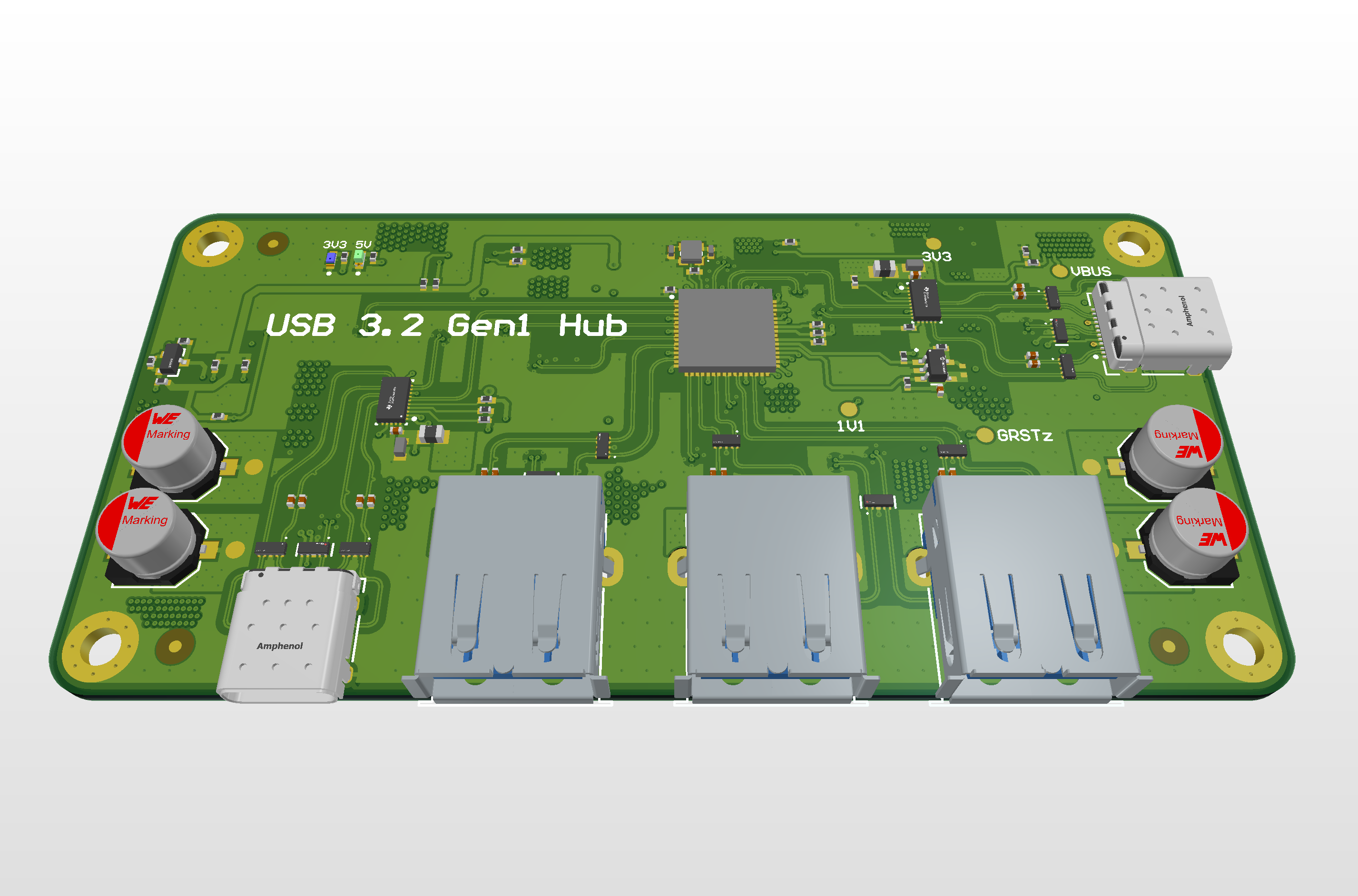

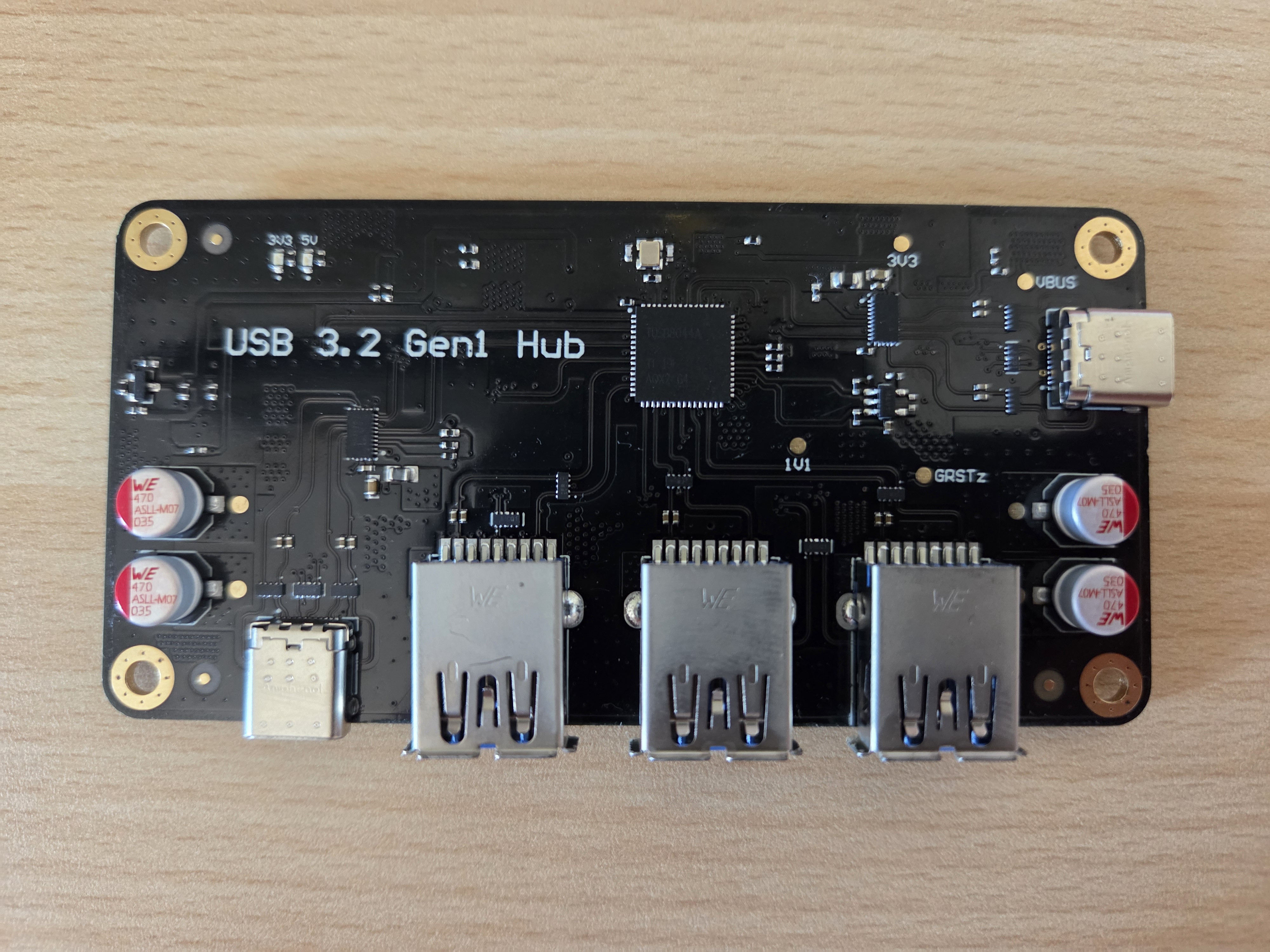

USB3.2 Hub 4Port is an open source interface board published by Alberto0235, with its design files available on GitHub. The project summarises itself as “USB 3.2 Gen 1 4-port hub based on TI TUSB8044A. 6-layer impedance-controlled PCB with USB-C cold-socket compliance, hardware power sequencing, and no MCU.”
The repository has collected 8 stars and been forked 0 times, with the last commit 3 months ago.
What’s in the repository
- Schematic and board source files published by the author
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under MIT, one of the permissive licenses. You can fork the design, change it, manufacture it and sell the result, provided you keep the original copyright and license notice with the files.
Opening it in ProtoFlow
The repository does not clearly state which EDA tool produced the files — check the repository contents before planning an import.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit Alberto0235 if you publish or sell what you build from it.
