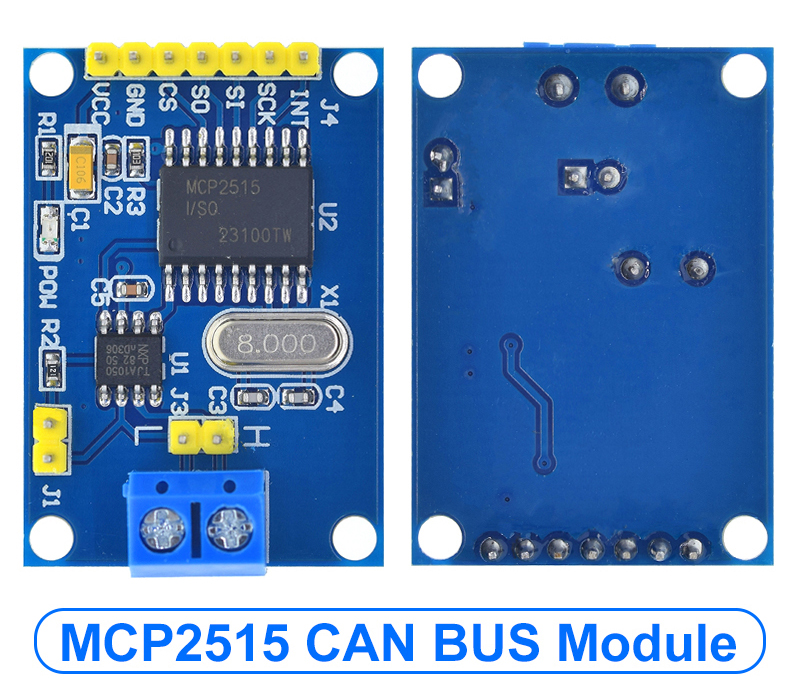

MCP2515 CAN Bus Module
MCP2515 CAN Bus Module is a community-built interface board. yasir-shahzad publishes the full project on GitHub for anyone to study or build. In the maintainer's words: “MCP2515 and TJA1050 CAN Bus Module.”
It has 40 stars and 8 forks on GitHub, with the last commit 7 months ago.
What’s in the repository

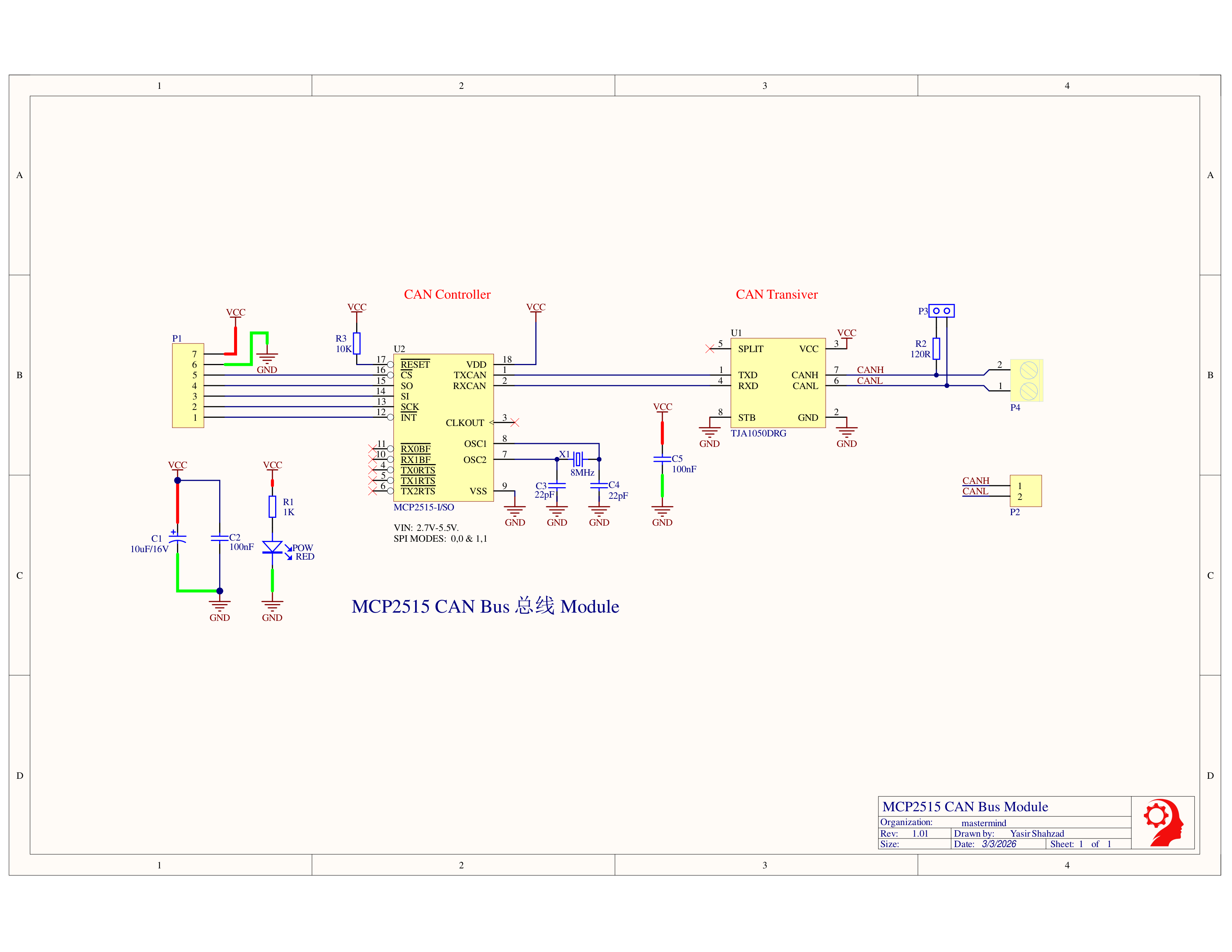

- Schematic and board source files published by the author
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under GPL-3.0, a copyleft license. You are free to fork and modify the design, but anything you distribute that is derived from it has to be published under the same terms — worth checking before it goes into a closed product.
Opening it in ProtoFlow
The repository does not clearly state which EDA tool produced the files — check the repository contents before planning an import.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit yasir-shahzad if you publish or sell what you build from it.
This page indexes a public repository. The design, the files and the copyright belong to yasir-shahzad; ProtoFlow does not host, mirror or verify them. Details are read from GitHub and refreshed periodically — check the repository for the current state of the project.
