QuarkNPi
by MehverOSHW

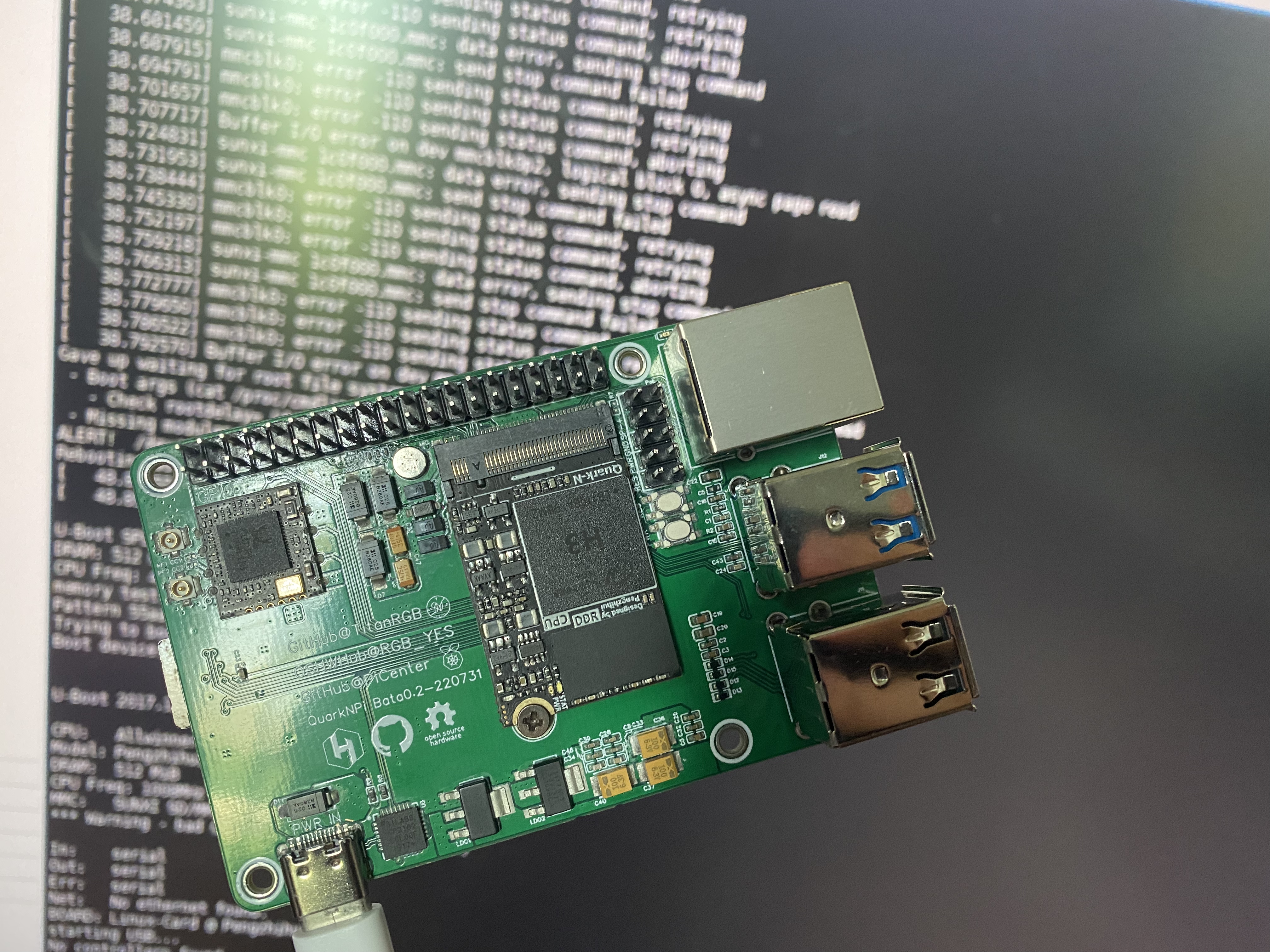

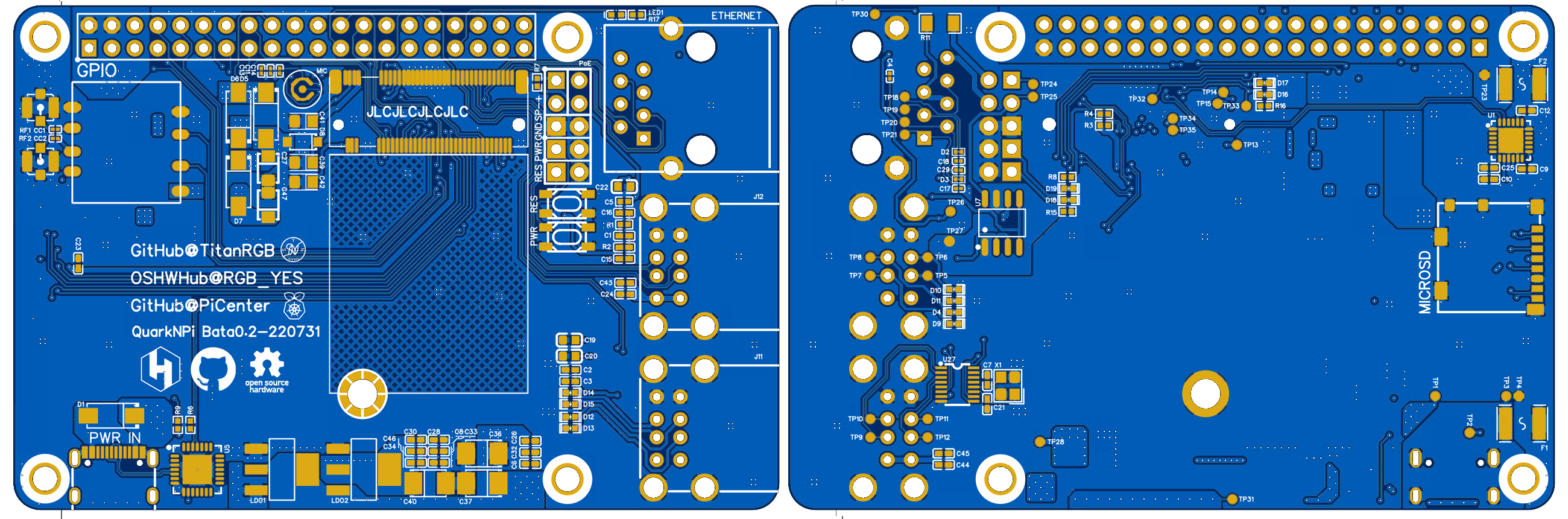

MehverOSHW maintains QuarkNPi, an open hardware art board whose EasyEDA source files are public on GitHub. The author describes it as: “基于树莓派4布局的底板，核心板为稚晖君 (@peng-zhihui) 的 Project Quantum 项目。| A shield (IO board) according with RBPi4, the core is @peng-zhihui 's Quark N.”
15 people have starred it and 5 have forked it, and the files were touched within the last month.
What’s in the repository
- EasyEDA project source files
- A project site with further documentation
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under GPL-3.0, a copyleft license. You are free to fork and modify the design, but anything you distribute that is derived from it has to be published under the same terms — worth checking before it goes into a closed product.
Opening it in ProtoFlow
The design was drawn in EasyEDA. EasyEDA can export to KiCad format, which is the route into ProtoFlow or any KiCad-based workflow.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit MehverOSHW if you publish or sell what you build from it.
This page indexes a public repository. The design, the files and the copyright belong to MehverOSHW; ProtoFlow does not host, mirror or verify them. Details are read from GitHub and refreshed periodically — check the repository for the current state of the project.
