Osillyscope
by tvlad1234

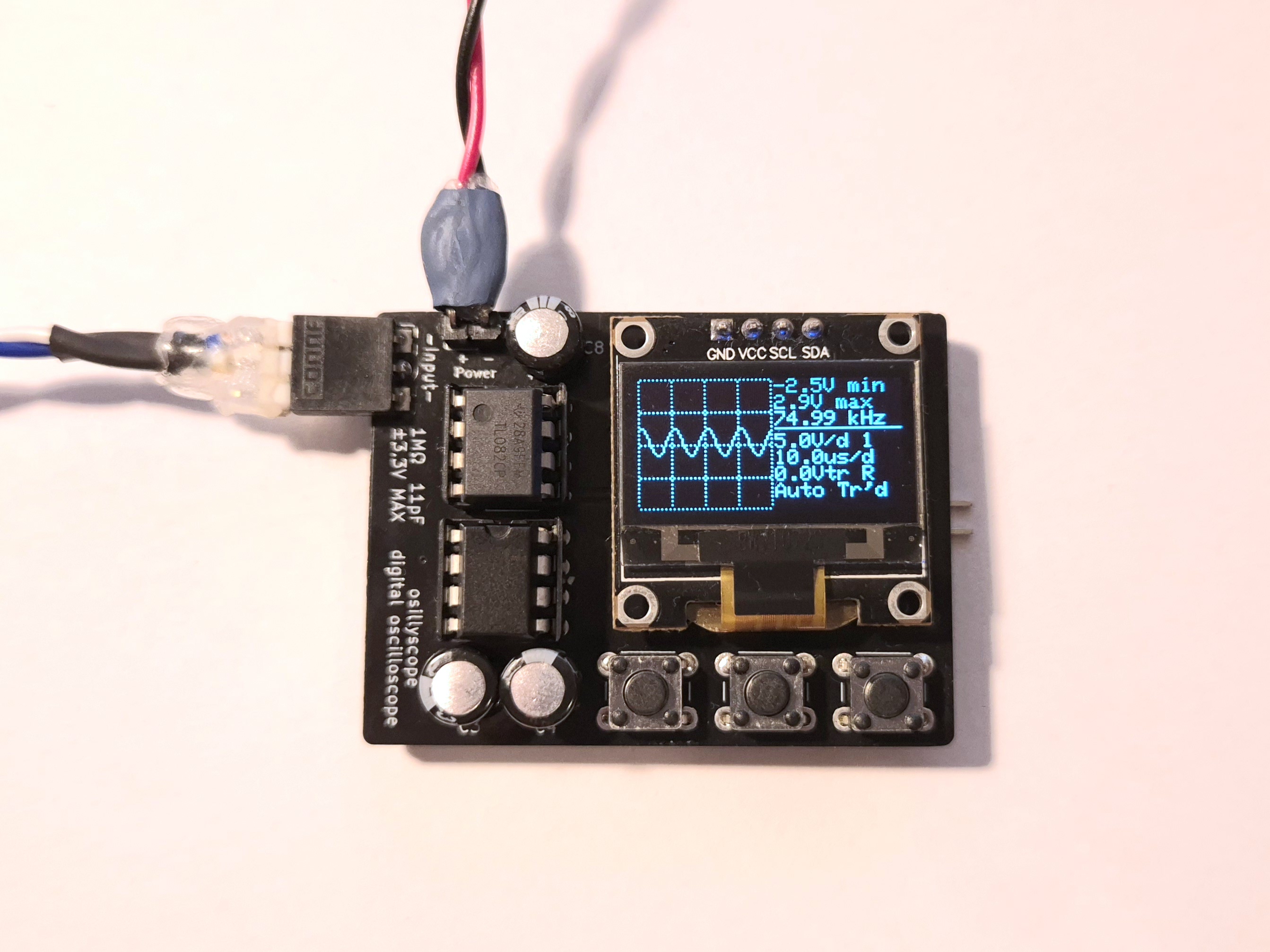

Osillyscope is an open source test instrument published by tvlad1234, with its design files available on GitHub. In the maintainer's words: “Low cost, low part count CH32V003-based oscilloscope.”
It has 29 stars and 1 forks on GitHub, with the last commit 9 months ago.
What’s in the repository

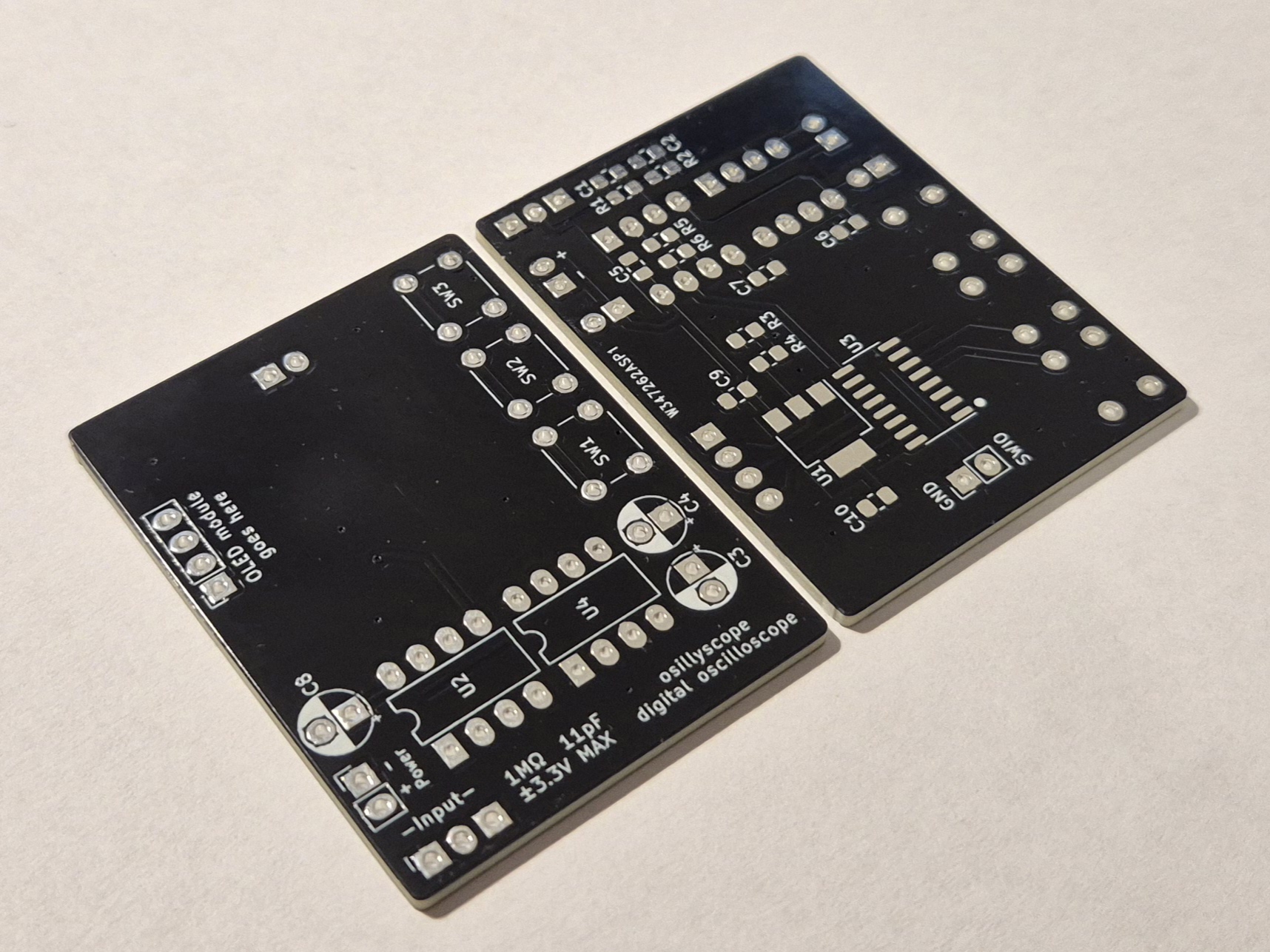

- Schematic and board source files published by the author
