OM 64DO
by OpenModbus

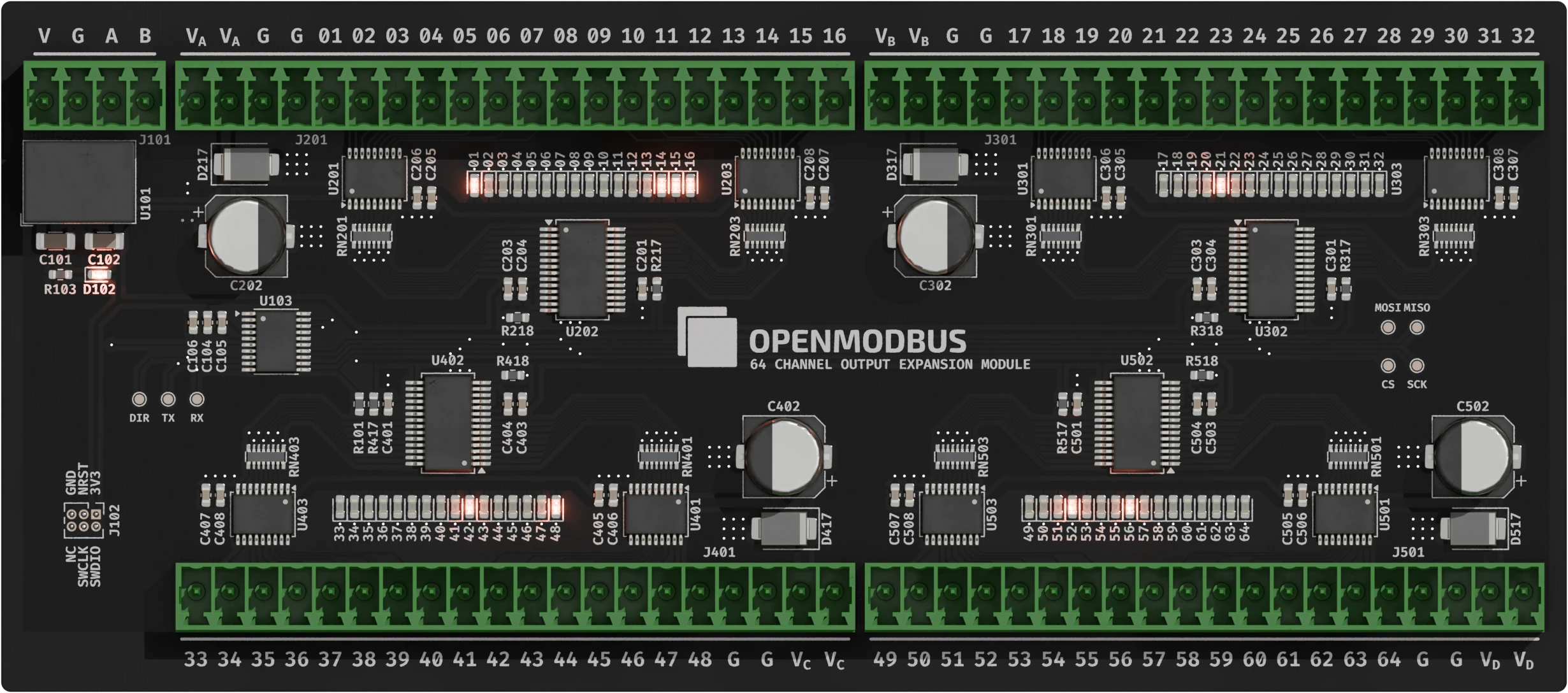

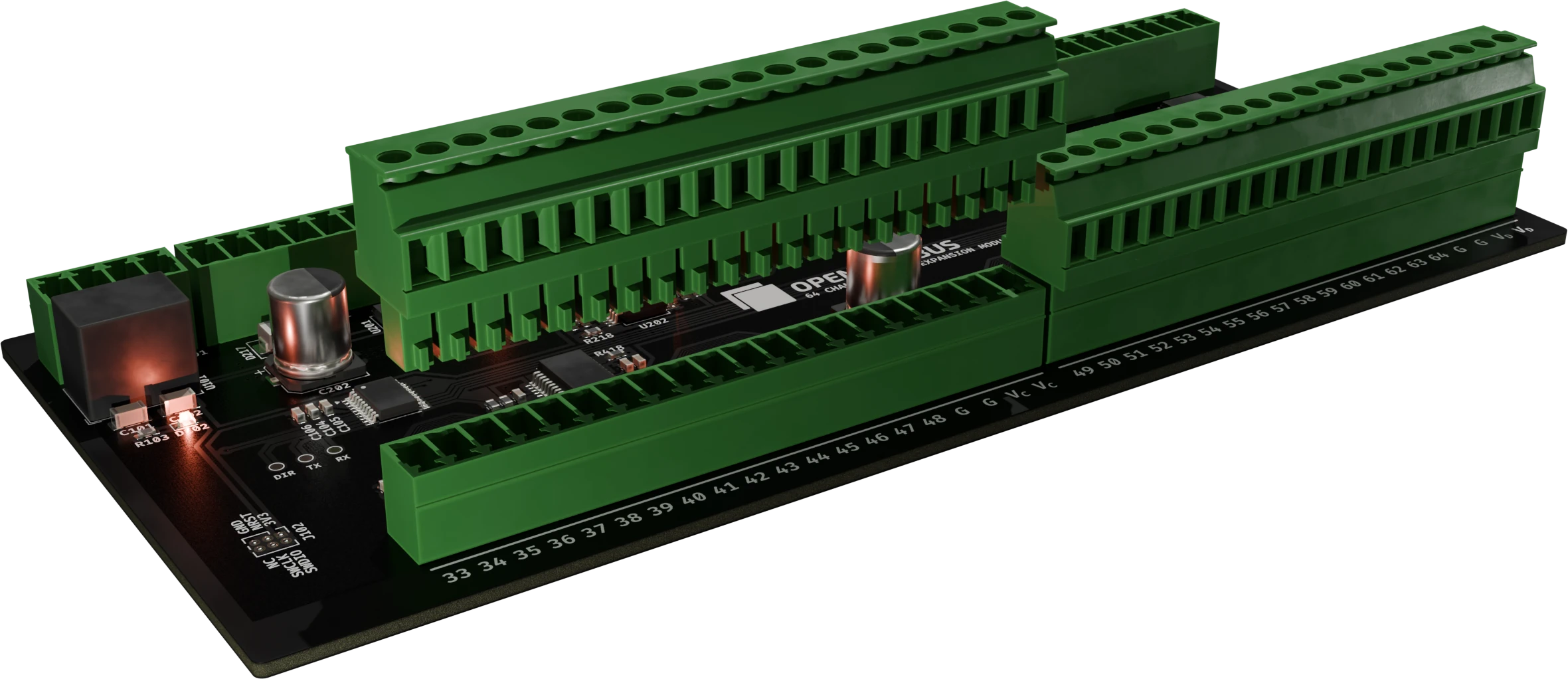

OM 64DO is an open source microcontroller board published by OpenModbus, with its design files available on GitHub. The author describes it as: “A compact industrial-grade 64-channel Modbus RTU output module.”
20 people have starred it and 3 have forked it, with the last commit 6 months ago.
What’s in the repository
- Schematic and board source files published by the author
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under GPL-3.0, a copyleft license. You are free to fork and modify the design, but anything you distribute that is derived from it has to be published under the same terms — worth checking before it goes into a closed product.
Opening it in ProtoFlow
The repository does not clearly state which EDA tool produced the files — check the repository contents before planning an import.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit OpenModbus if you publish or sell what you build from it.
This page indexes a public repository. The design, the files and the copyright belong to OpenModbus; ProtoFlow does not host, mirror or verify them. Details are read from GitHub and refreshed periodically — check the repository for the current state of the project.
