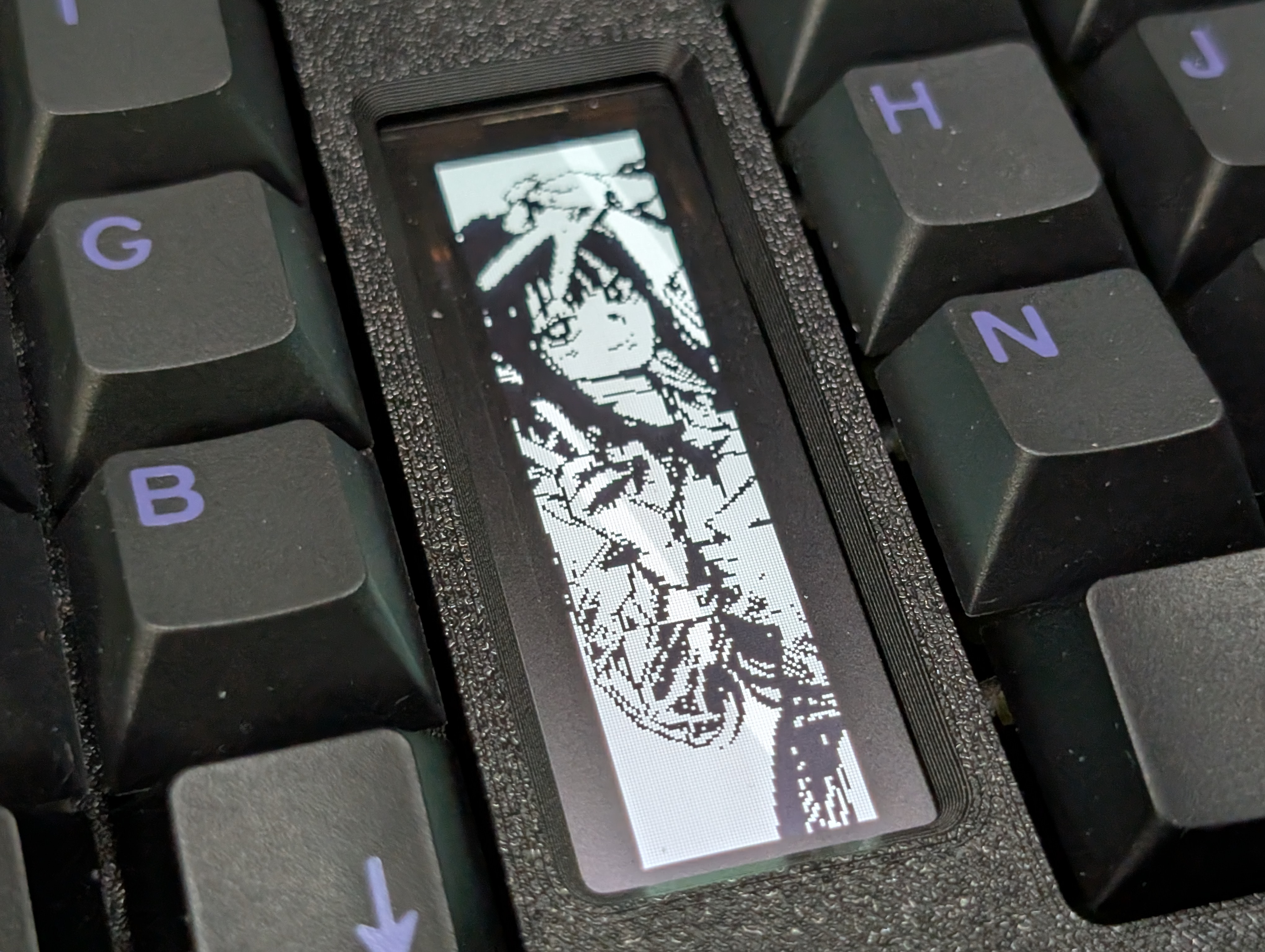

ChrisChrisLoLo maintains loongcat40, an open hardware display and LED board whose KiCad source files are public on GitHub. The project summarises itself as “loongcat is loooooong.”
The repository has collected 39 stars and been forked 0 times, with the last commit 9 months ago.
What’s in the repository
- KiCad schematic and PCB layout source files
- A project site with further documentation
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under GPL-3.0, a copyleft license. You are free to fork and modify the design, but anything you distribute that is derived from it has to be published under the same terms — worth checking before it goes into a closed product.
Opening it in ProtoFlow
Select Edit in ProtoFlow for the available opening options. Download the source and open supported KiCad schematic or board files in the desktop app; check the project version and external libraries.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit ChrisChrisLoLo if you publish or sell what you build from it.
