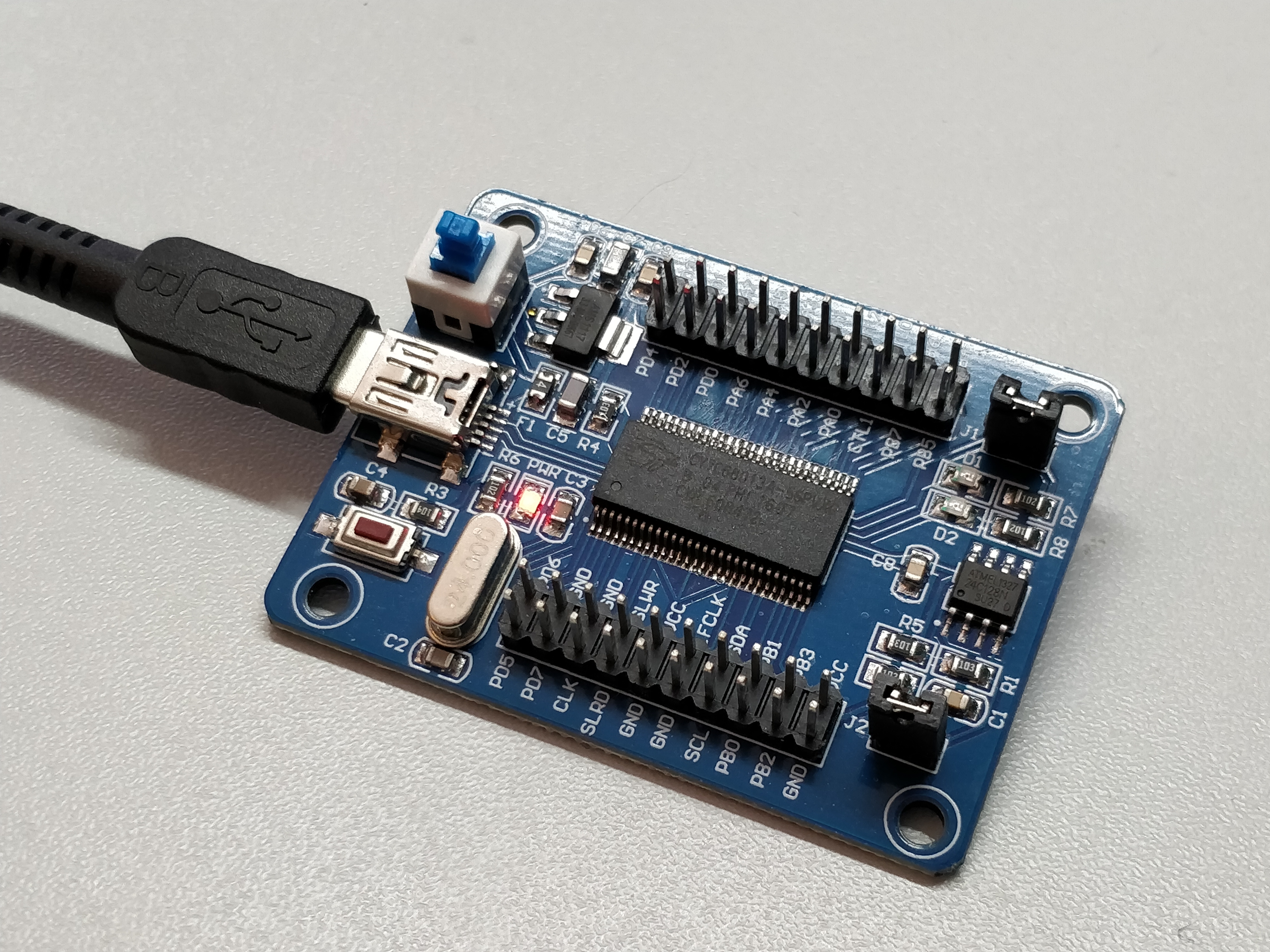

FRautenberg maintains Logic Analyzer, an open hardware test instrument whose source files are public on GitHub. The author describes it as: “simple and cheap 16 channel logic analyzer based on Cypress CY7C68013A development board.”
42 people have starred it and 10 have forked it, with the last commit 6 years ago.
What’s in the repository
- Schematic and board source files published by the author
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under GPL-3.0, a copyleft license. You are free to fork and modify the design, but anything you distribute that is derived from it has to be published under the same terms — worth checking before it goes into a closed product.
