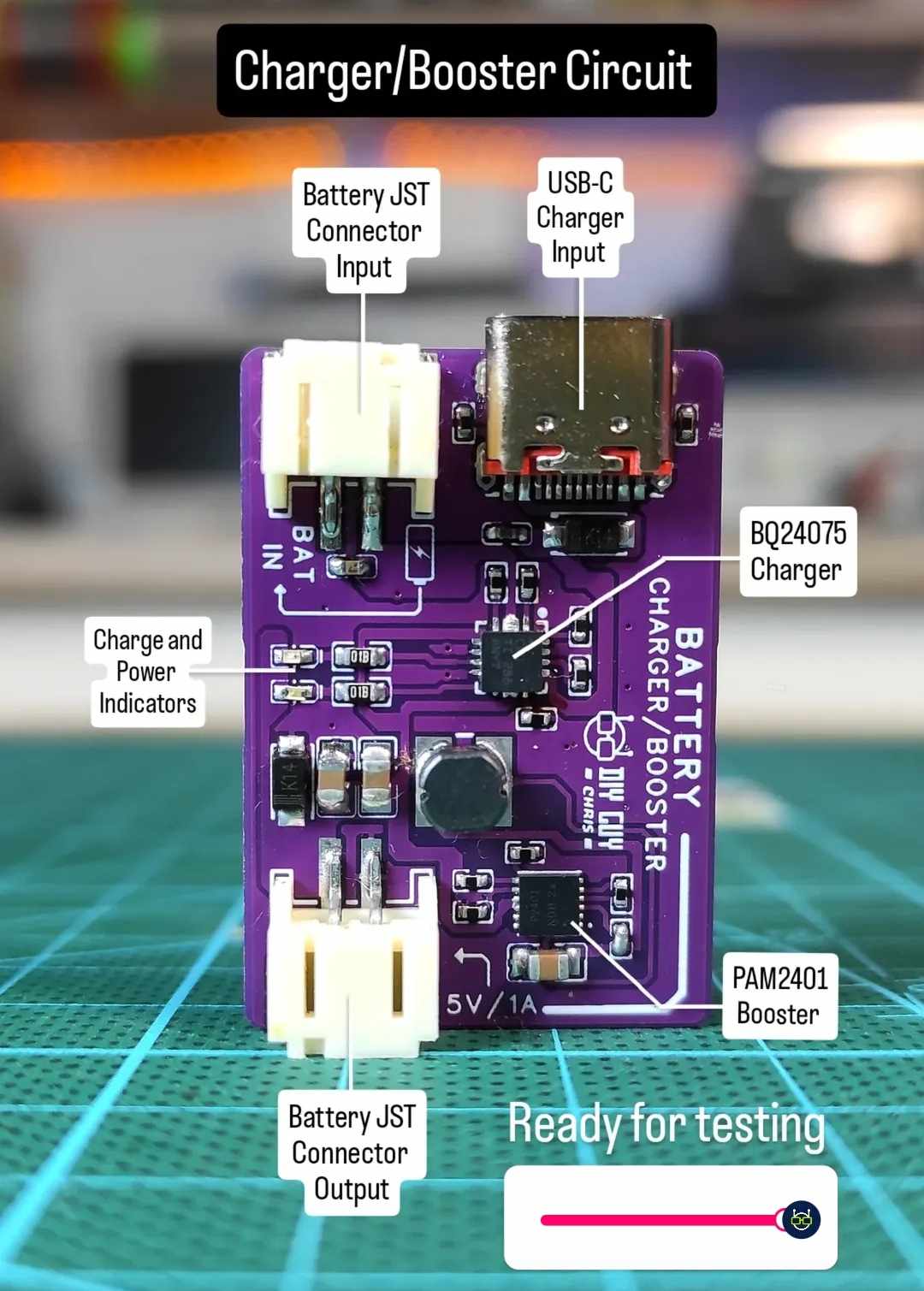

Built by BEEMB, LiPo Charger Booster Compact Power Combo is an open hardware power board released with its design files intact. The author describes it as: “Tiny 24x34mm PCB combining BQ24075 charger + PAM2401 boost converter. Production-ready design with USB-C input, status LEDs, and JLCPCB-optimized files. Learn from my output contention debugging journey!.”
8 people have starred it and 1 have forked it, with the last commit about a year ago.
What’s in the repository
- Schematic and board source files published by the author
- A project site with further documentation
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under MIT, one of the permissive licenses. You can fork the design, change it, manufacture it and sell the result, provided you keep the original copyright and license notice with the files.
Opening it in ProtoFlow
The repository does not clearly state which EDA tool produced the files — check the repository contents before planning an import.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit BEEMB if you publish or sell what you build from it.
This page indexes a public repository. The design, the files and the copyright belong to BEEMB; ProtoFlow does not host, mirror or verify them. Details are read from GitHub and refreshed periodically — check the repository for the current state of the project.
