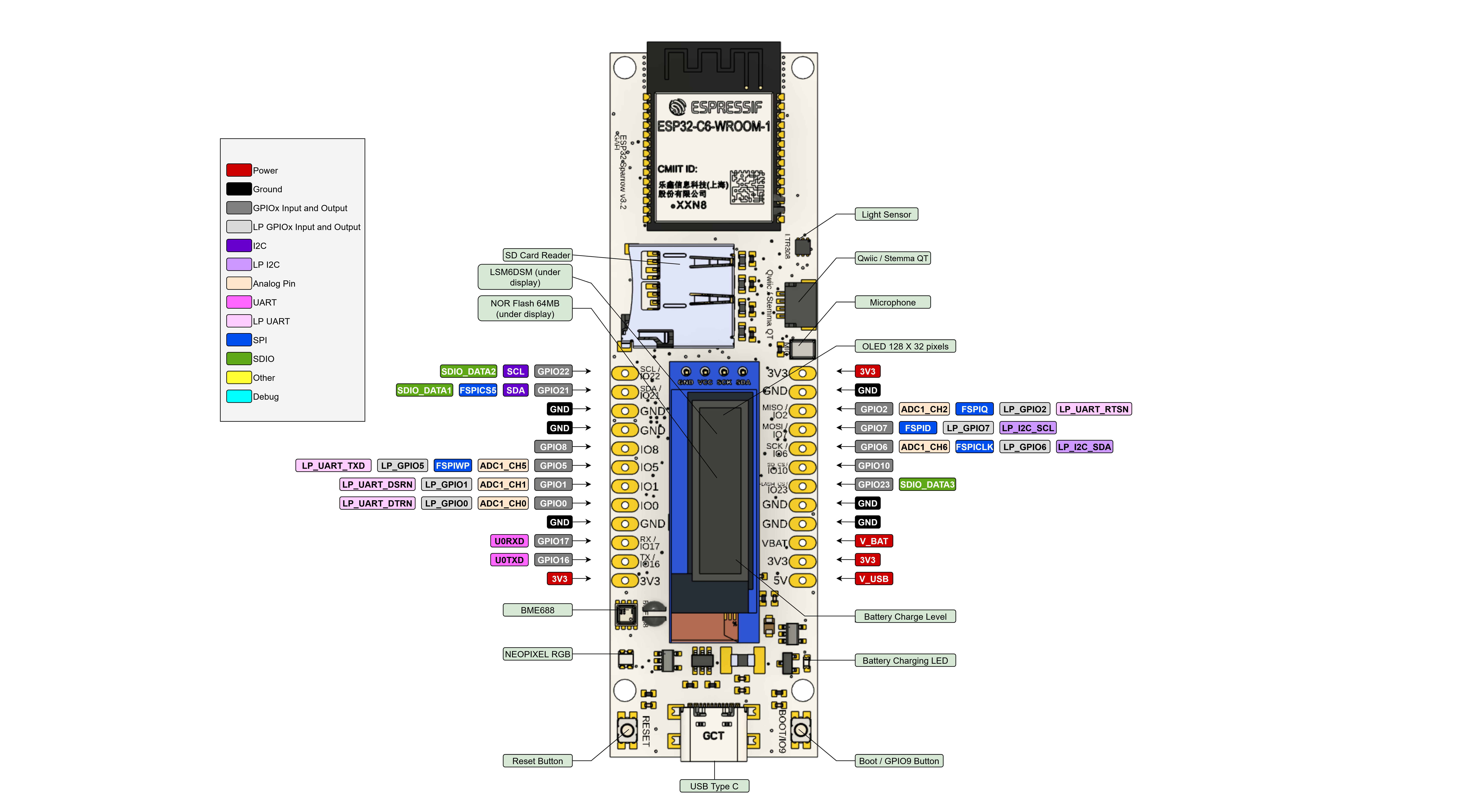

esp32 c6 Sparrow is a sensor board published by FarhadGUL06, with public design files on GitHub. Check the repository terms before reuse. In the maintainer's words: “Development of a low-power IoT board based on ESP32-C6 with Zigbee & Thread support. This repo includes the full schematic, PCB design files, 3D models, and test code, along with integrated sensors, display, and battery management—perfect for IoT and sensor-based projects.”
It has 8 stars and 1 forks on GitHub, with the last commit about a year ago.
What’s in the repository
- Schematic and board source files published by the author
- Full revision history, so you can see how the board changed between versions
Licence and reuse
No license is declared on the repository. Publishing files publicly is not the same as granting permission to reuse them, so ask the author before you build on this design.
Opening it in ProtoFlow
The repository does not clearly state which EDA tool produced the files — check the repository contents before planning an import.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit FarhadGUL06 if you publish or sell what you build from it.
This page indexes a public repository. The design, the files and the copyright belong to FarhadGUL06; ProtoFlow does not host, mirror or verify them. Details are read from GitHub and refreshed periodically — check the repository for the current state of the project.
