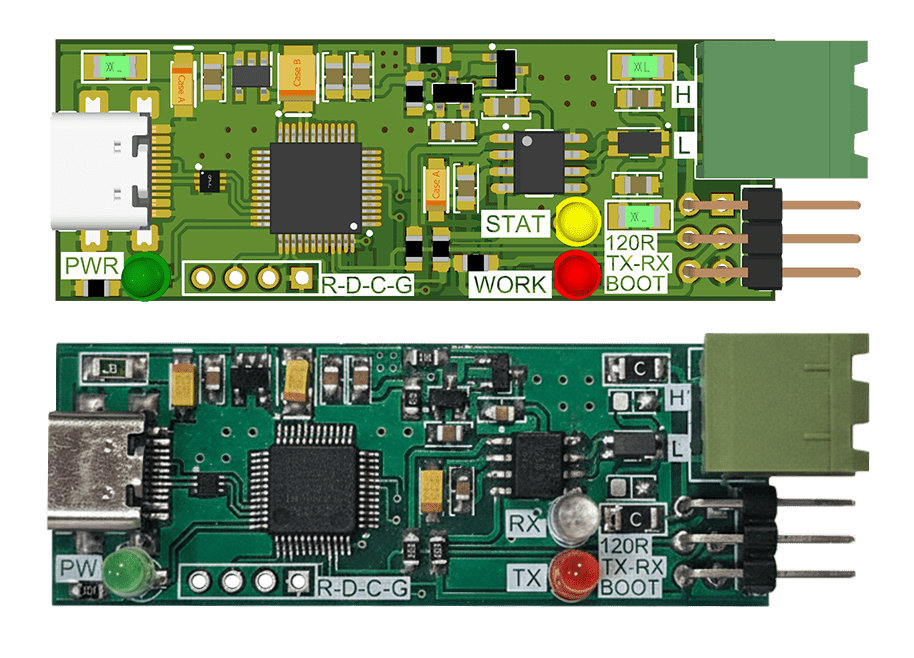

Built by aKaReZa75, eBoard Can Analyzer is an open hardware automotive board released with its design files intact. The project summarises itself as “A custom STM32-based CAN analyzer designed to capture, monitor, and analyze CAN bus data using SavvyCAN or any compatible PC software.”
The repository has collected 17 stars and been forked 0 times, and the files were touched within the last month.
What’s in the repository
- Schematic and board source files published by the author
- A project site with further documentation
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under GPL-3.0, a copyleft license. You are free to fork and modify the design, but anything you distribute that is derived from it has to be published under the same terms — worth checking before it goes into a closed product.
Opening it in ProtoFlow
The repository does not clearly state which EDA tool produced the files — check the repository contents before planning an import.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit aKaReZa75 if you publish or sell what you build from it.
This page indexes a public repository. The design, the files and the copyright belong to aKaReZa75; ProtoFlow does not host, mirror or verify them. Details are read from GitHub and refreshed periodically — check the repository for the current state of the project.
