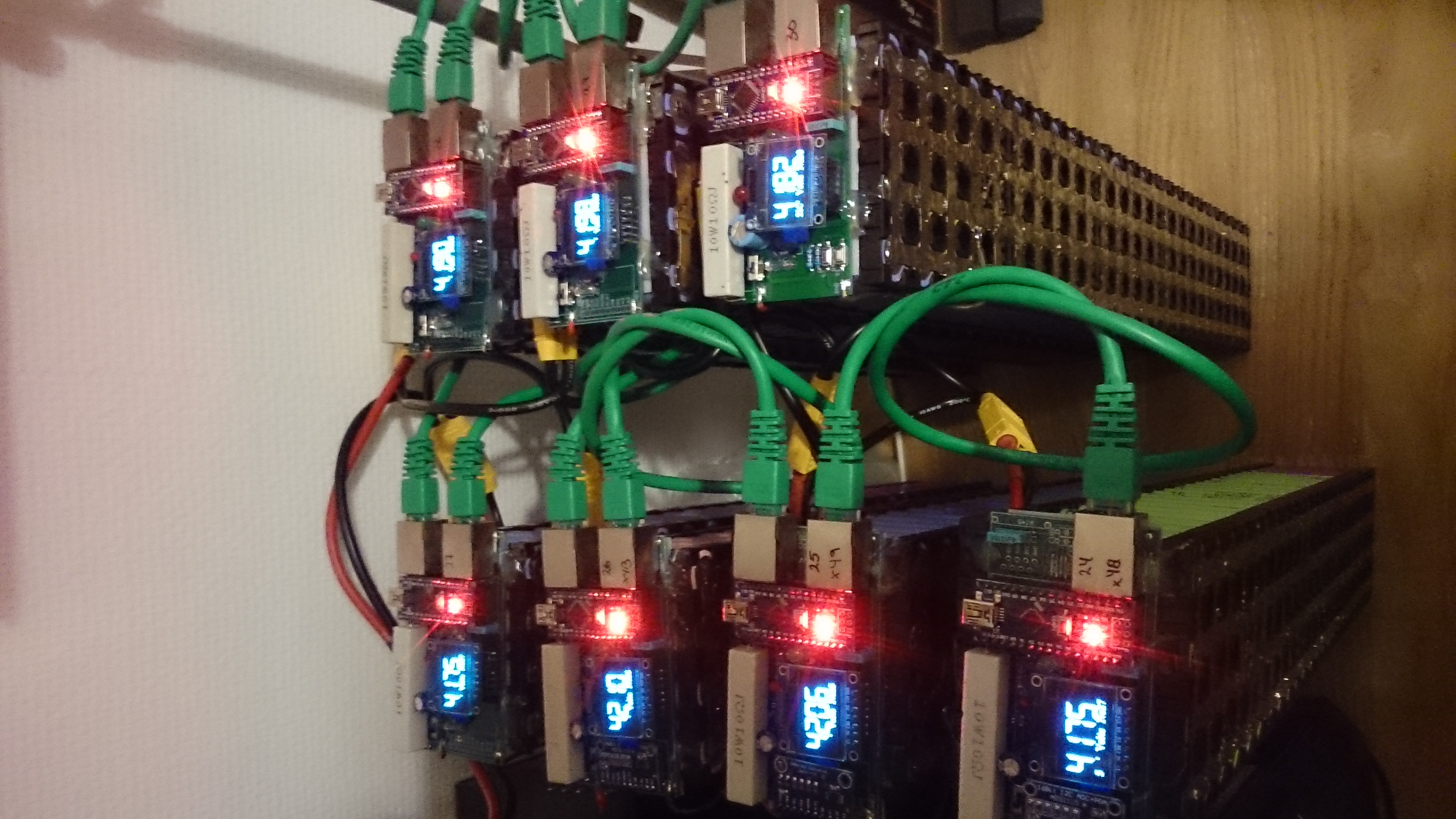

Diy BMS With Arduino Nano is a community-built microcontroller board. tvixen publishes the full project on GitHub for anyone to study or build. The project summarises itself as “If you have a private powerwall of 18650 cells, this is the battery management system you need. The small PCB is equipped with the cheap Arduino Nano.”
The repository has collected 45 stars and been forked 4 times, with the last commit 7 years ago.
What’s in the repository
- Schematic and board source files published by the author
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under GPL-3.0, a copyleft license. You are free to fork and modify the design, but anything you distribute that is derived from it has to be published under the same terms — worth checking before it goes into a closed product.
