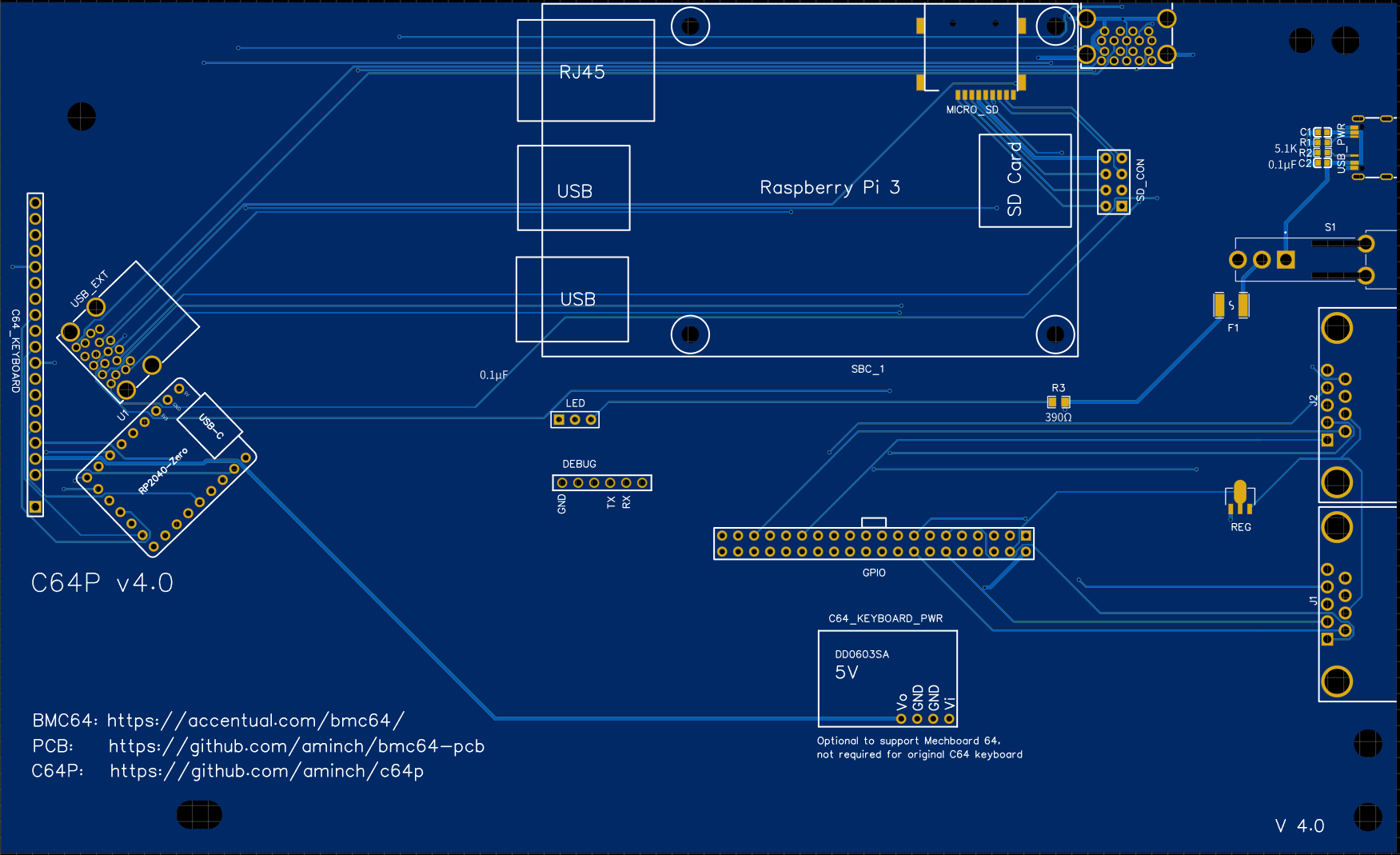

bmc64 Pcb is a retro computing board published by aminch, with public design files on GitHub. Check the repository terms before reuse. The project summarises itself as “BMC64 all-in-one pcb for an original Commodore 64 case.”
The repository has collected 24 stars and been forked 1 times, with the last commit 2 months ago.
What’s in the repository
- Schematic and board source files published by the author
- Full revision history, so you can see how the board changed between versions
Licence and reuse
No license is declared on the repository. Publishing files publicly is not the same as granting permission to reuse them, so ask the author before you build on this design.
Opening it in ProtoFlow
The repository does not clearly state which EDA tool produced the files — check the repository contents before planning an import.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit aminch if you publish or sell what you build from it.
