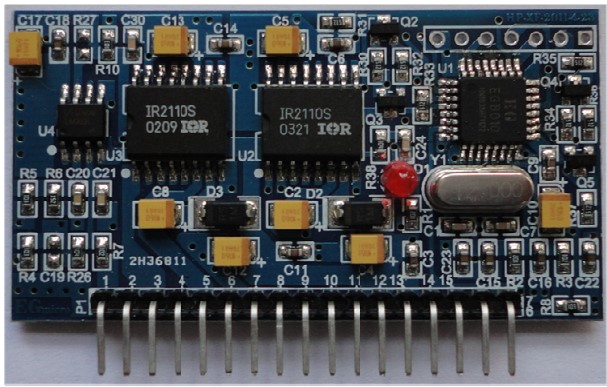

4KW 230V Inverter is a power board published by tvixen, with public design files on GitHub. Check the repository terms before reuse. In the maintainer's words: “With these schematics and PCB's, it's possible to create a 230V AC 4KW inverter. The main processor is based on Arduino Nano, with help from a graphic processor Arduino Mega2560, to run the demanding graphic and interface to front buttons.”
It has 70 stars and 21 forks on GitHub, with the last commit 4 years ago.
What’s in the repository
- Schematic and board source files published by the author
- Full revision history, so you can see how the board changed between versions
Licence and reuse
No license is declared on the repository. Publishing files publicly is not the same as granting permission to reuse them, so ask the author before you build on this design.
Opening it in ProtoFlow
The repository does not clearly state which EDA tool produced the files — check the repository contents before planning an import.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit tvixen if you publish or sell what you build from it.
