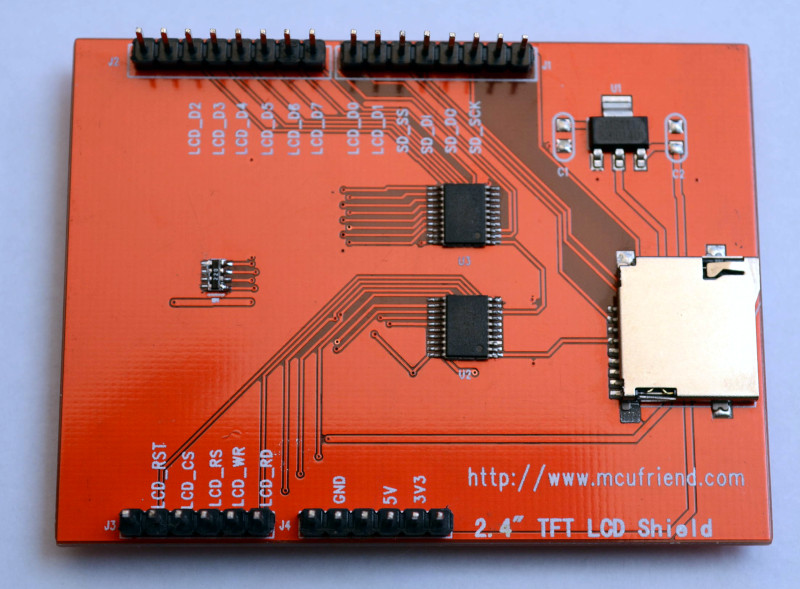

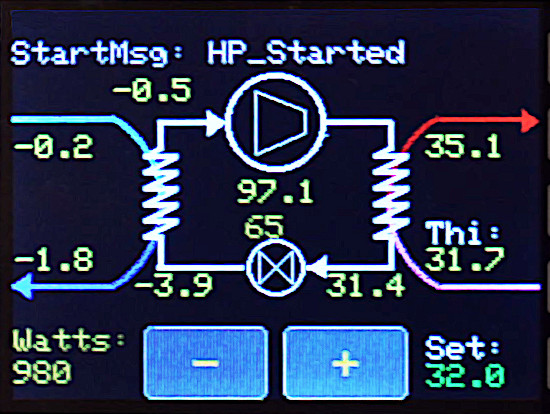

openhp maintains ServiceDisplay, an open hardware sensor board whose source files are public on GitHub. In the maintainer's words: “The Service Display is a open source tool, that allows you to connect Valden Heat Pump Controller to get maximum available information from sensors and show it graphically.”
It has 17 stars and 7 forks on GitHub, with the last commit 5 years ago.
What’s in the repository
- Schematic and board source files published by the author
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under GPL-3.0, a copyleft license. You are free to fork and modify the design, but anything you distribute that is derived from it has to be published under the same terms — worth checking before it goes into a closed product.
Opening it in ProtoFlow
The repository does not clearly state which EDA tool produced the files — check the repository contents before planning an import.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit openhp if you publish or sell what you build from it.
