sdtv2csi

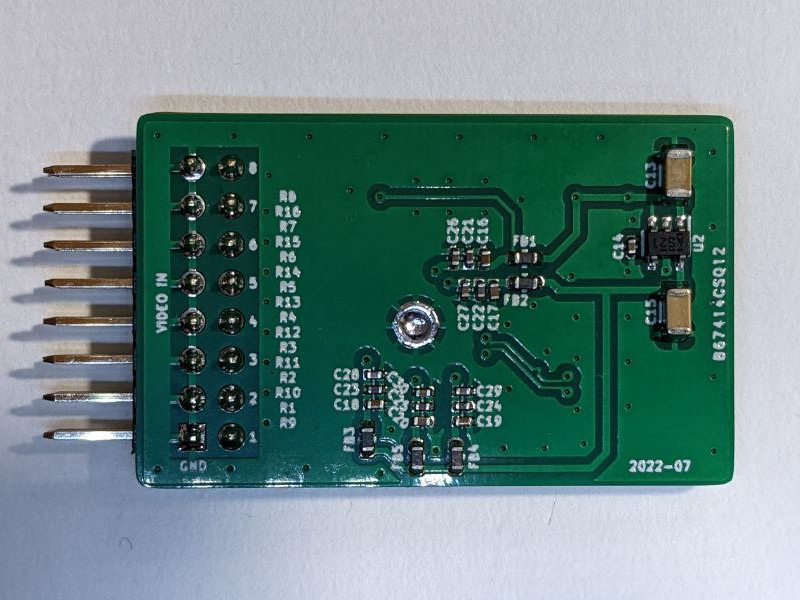

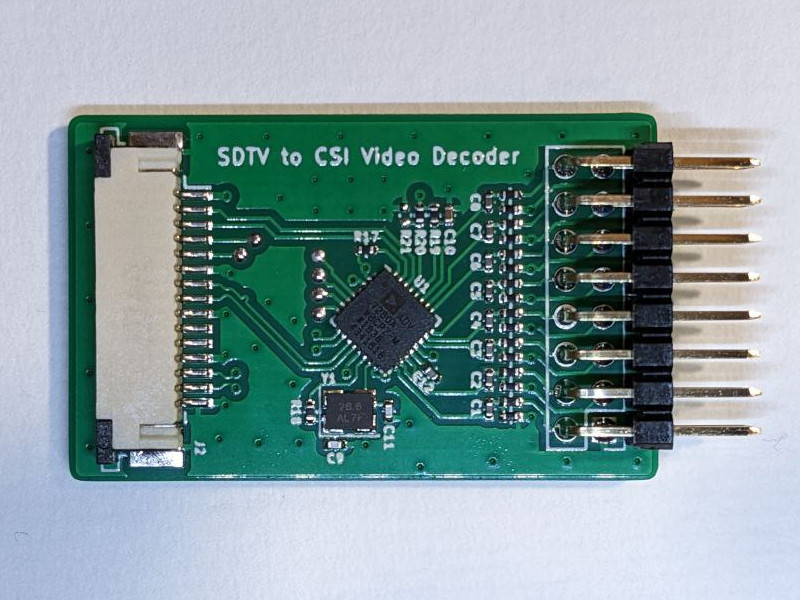

sdtv2csi is a community-built retro computing board. rniwase publishes the full KiCad project on GitHub for anyone to study or build. The project summarises itself as “Board for converting SDTV analog video to MIPI CSI-2 using Analog Devices ADV7280A-M.”

The repository has collected 53 stars and been forked 10 times, with the last commit about a year ago.

What’s in the repository

• KiCad schematic and PCB layout source files
• Full revision history, so you can see how the board changed between versions

Licence and reuse

Released under CC0-1.0, one of the permissive licenses. You can fork the design, change it, manufacture it and sell the result, provided you keep the original copyright and license notice with the files.

Opening it in ProtoFlow

Select Edit in ProtoFlow for the available opening options. Download the source and open supported KiCad schematic or board files in the desktop app; check the project version and external libraries.

1. 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
2. 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
3. 03 Keep the original licence and credit rniwase if you publish or sell what you build from it.
