OpenZ3Gateway
by cyijun

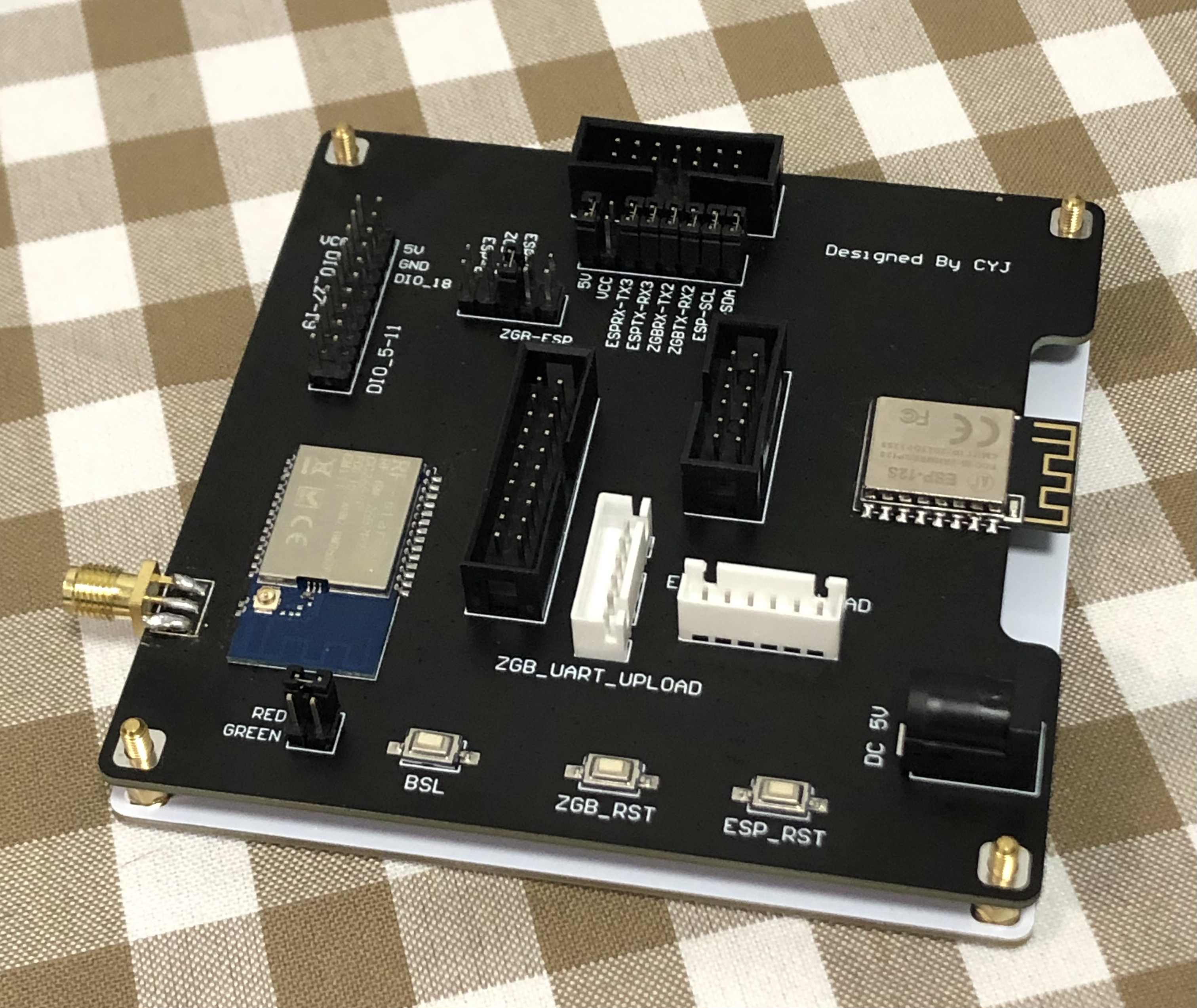

cyijun maintains OpenZ3Gateway, an open hardware microcontroller board whose source files are public on GitHub. In the maintainer's words: “An open source Zstack3 gateway powered by ESP8266 and CC2652 modules.”
It has 42 stars and 13 forks on GitHub, with the last commit 5 years ago.
What’s in the repository
- Schematic and board source files published by the author
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under Apache-2.0, one of the permissive licenses. You can fork the design, change it, manufacture it and sell the result, provided you keep the original copyright and license notice with the files.
Opening it in ProtoFlow
The repository does not clearly state which EDA tool produced the files — check the repository contents before planning an import.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit cyijun if you publish or sell what you build from it.
This page indexes a public repository. The design, the files and the copyright belong to cyijun; ProtoFlow does not host, mirror or verify them. Details are read from GitHub and refreshed periodically — check the repository for the current state of the project.
