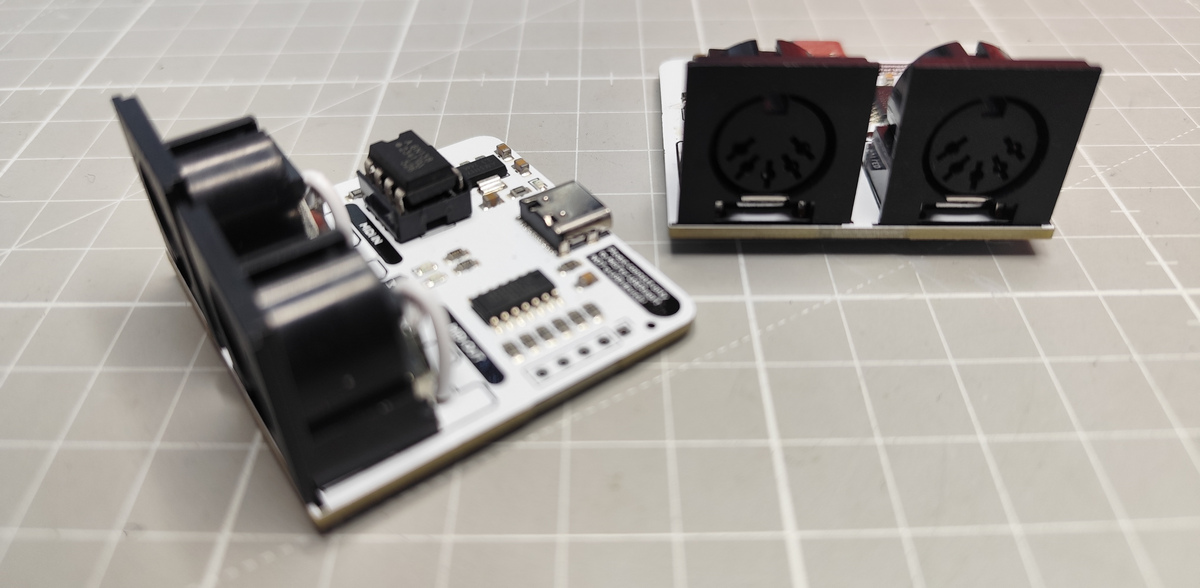

KabukiFlux maintains MIDI4MiSTer, an open hardware audio board whose KiCad source files are public on GitHub. The project summarises itself as “MiSTer user port MIDI output and input PCB.”
The repository has collected 13 stars and been forked 0 times, with the last commit about a year ago.
What’s in the repository

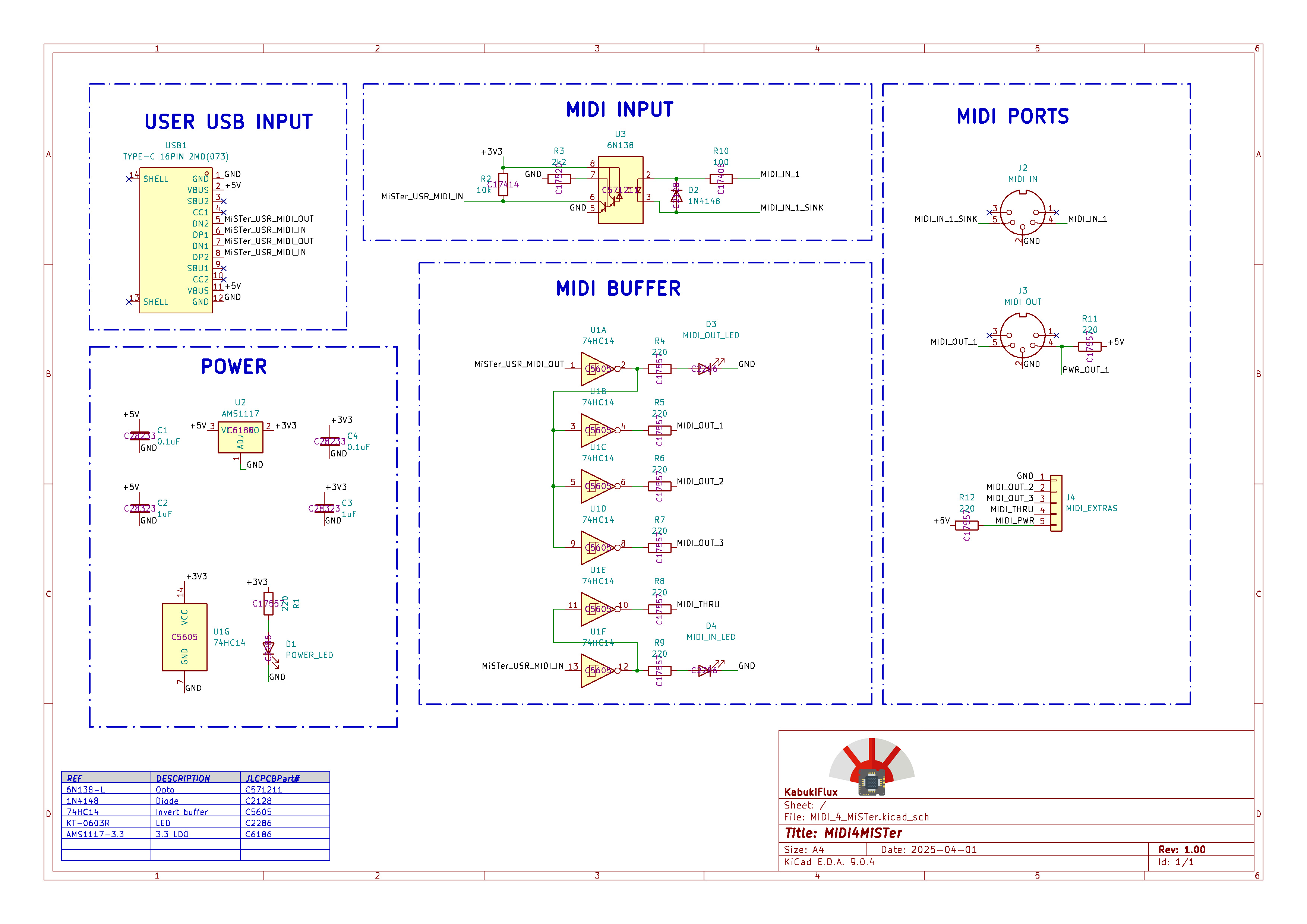

- KiCad schematic and PCB layout source files
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under MIT, one of the permissive licenses. You can fork the design, change it, manufacture it and sell the result, provided you keep the original copyright and license notice with the files.
Opening it in ProtoFlow
Select Edit in ProtoFlow for the available opening options. Download the source and open supported KiCad schematic or board files in the desktop app; check the project version and external libraries.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit KabukiFlux if you publish or sell what you build from it.
