Lumberjack Keyboard
by peej

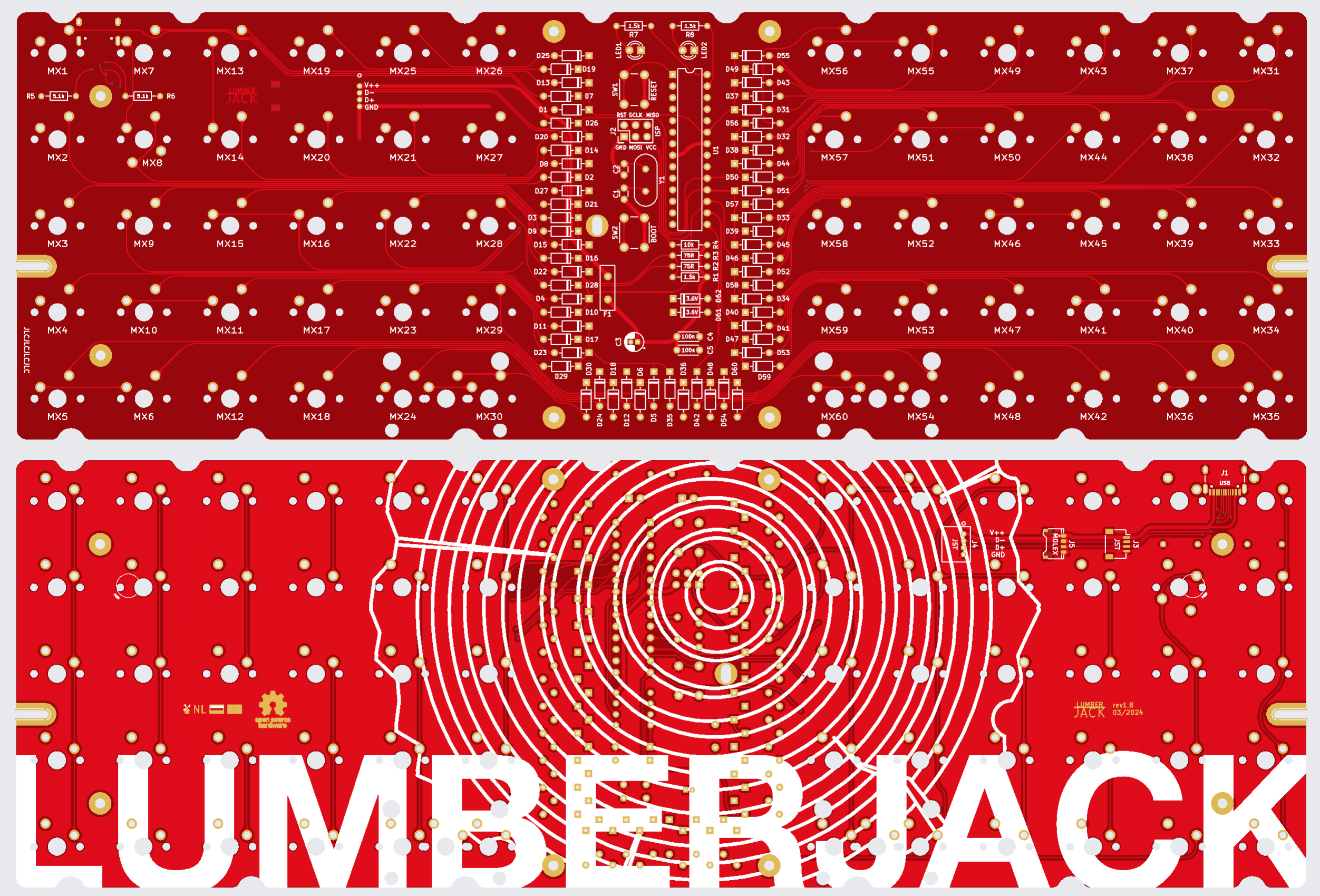

Lumberjack Keyboard is a community-built input device. peej publishes the full project on GitHub for anyone to study or build. The project summarises itself as “5x12 ortholinear through-hole component keyboard PCB for standard 60% cases.”
The repository has collected 402 stars and been forked 64 times, with the last commit 12 months ago.
What’s in the repository
- Schematic and board source files published by the author
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under MIT, one of the permissive licenses. You can fork the design, change it, manufacture it and sell the result, provided you keep the original copyright and license notice with the files.
Opening it in ProtoFlow
The repository does not clearly state which EDA tool produced the files — check the repository contents before planning an import.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit peej if you publish or sell what you build from it.
This page indexes a public repository. The design, the files and the copyright belong to peej; ProtoFlow does not host, mirror or verify them. Details are read from GitHub and refreshed periodically — check the repository for the current state of the project.
