HVCCPS
by AzidoPP

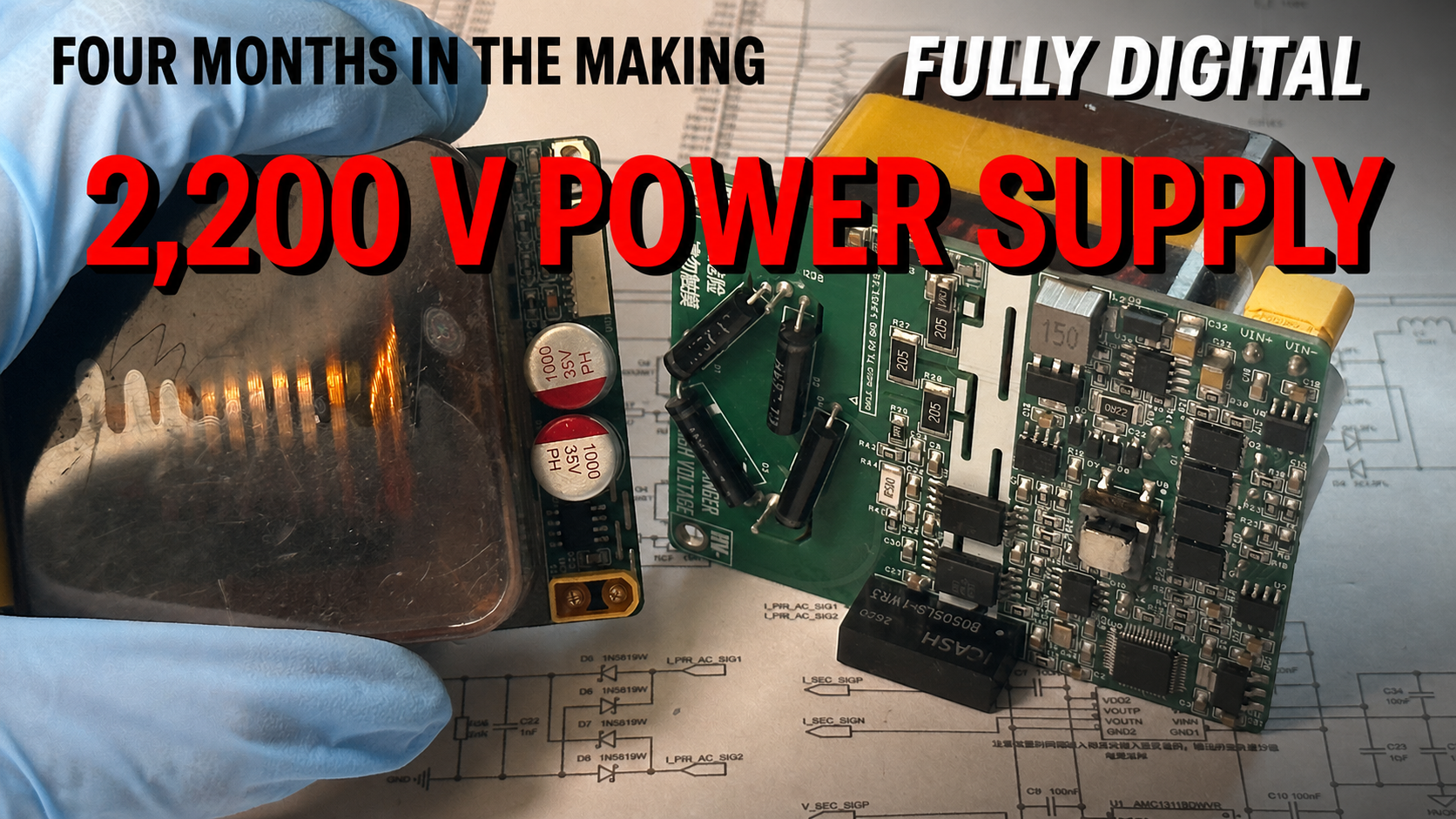

AzidoPP maintains HVCCPS, an open hardware power board whose EasyEDA source files are public on GitHub. In the maintainer's words: “2200V 200mA 400W High voltage power supply.”
It has 66 stars and 14 forks on GitHub, and the files were touched within the last month.
What’s in the repository
- EasyEDA project source files
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under GPL-3.0, a copyleft license. You are free to fork and modify the design, but anything you distribute that is derived from it has to be published under the same terms — worth checking before it goes into a closed product.
Opening it in ProtoFlow
The design was drawn in EasyEDA. EasyEDA can export to KiCad format, which is the route into ProtoFlow or any KiCad-based workflow.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit AzidoPP if you publish or sell what you build from it.
