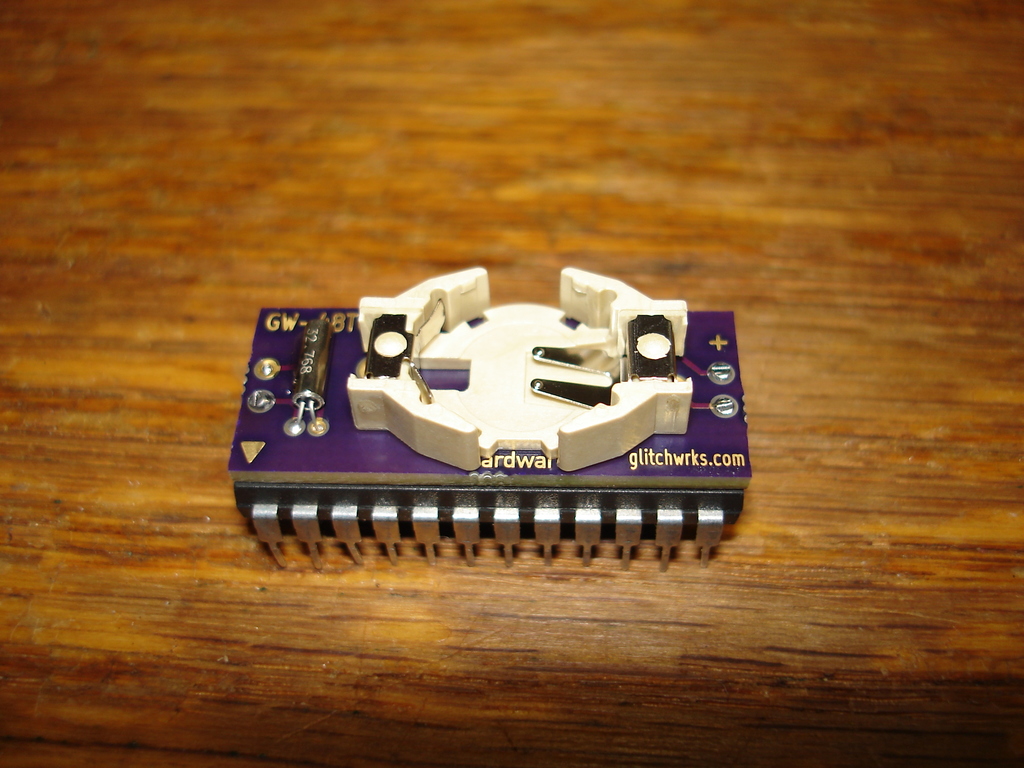

glitchwrks maintains gw 48t02 1, an open hardware power board whose KiCad source files are public on GitHub. In the maintainer's words: “48T02 RTC/NVRAM crystal + battery replacement module.”
It has 26 stars and 4 forks on GitHub, with the last commit 9 years ago.
What’s in the repository
- KiCad schematic and PCB layout source files
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under GPL-3.0, a copyleft license. You are free to fork and modify the design, but anything you distribute that is derived from it has to be published under the same terms — worth checking before it goes into a closed product.
Opening it in ProtoFlow
Select Edit in ProtoFlow for the available opening options. Download the source and open supported KiCad schematic or board files in the desktop app; check the project version and external libraries.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit glitchwrks if you publish or sell what you build from it.
