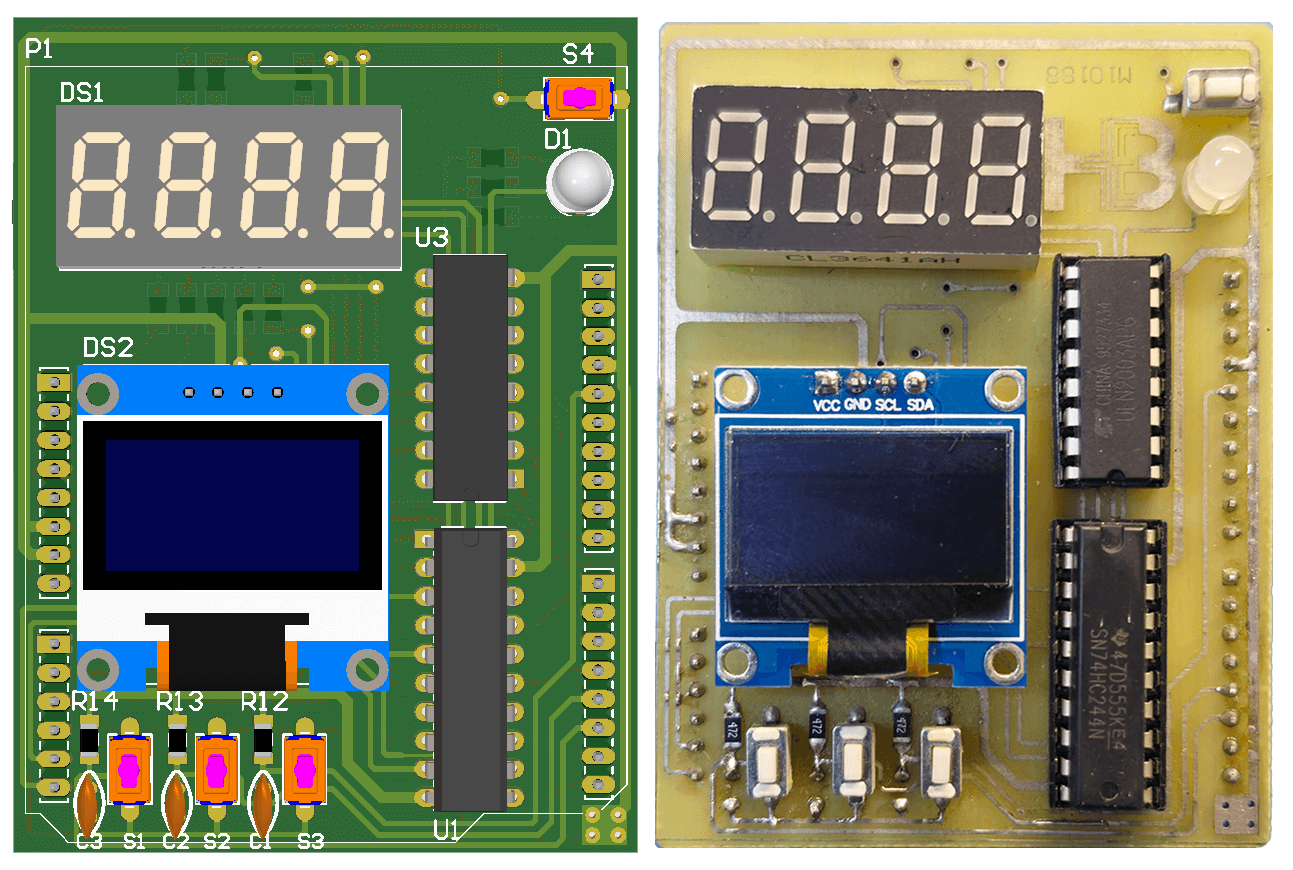

Built by aKaReZa75, eBoard 7Segments is an open hardware microcontroller board released with its design files intact. The author describes it as: “This project is an Arduino shield with a 7-segment display. The board includes a 7-segment display, push buttons, and an Oled display.”
19 people have starred it and 0 have forked it, with the last commit 11 months ago.
What’s in the repository
- Schematic and board source files published by the author
- A project site with further documentation
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under GPL-3.0, a copyleft license. You are free to fork and modify the design, but anything you distribute that is derived from it has to be published under the same terms — worth checking before it goes into a closed product.
Opening it in ProtoFlow
The repository does not clearly state which EDA tool produced the files — check the repository contents before planning an import.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit aKaReZa75 if you publish or sell what you build from it.
