Tinta
by c0de111

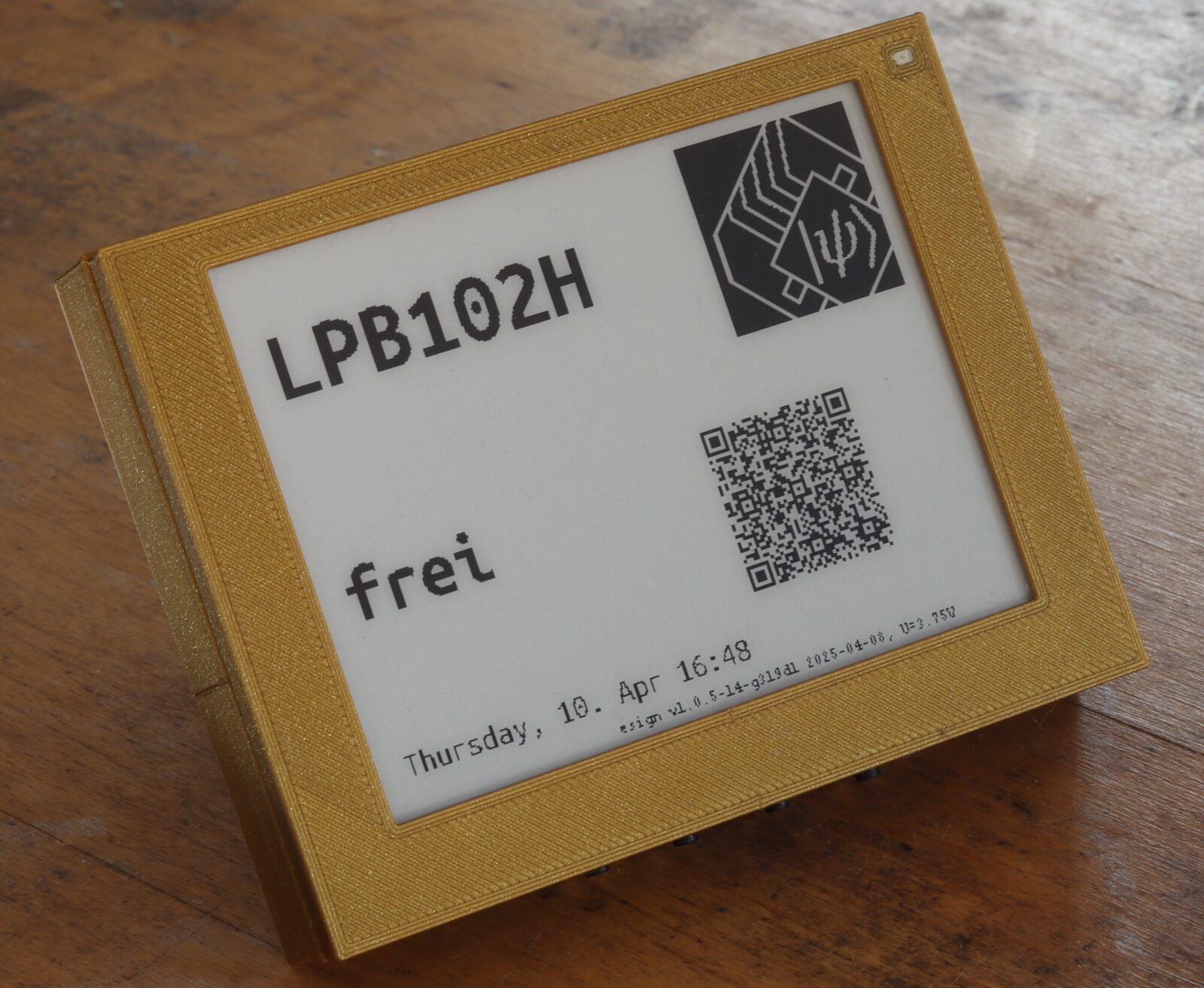

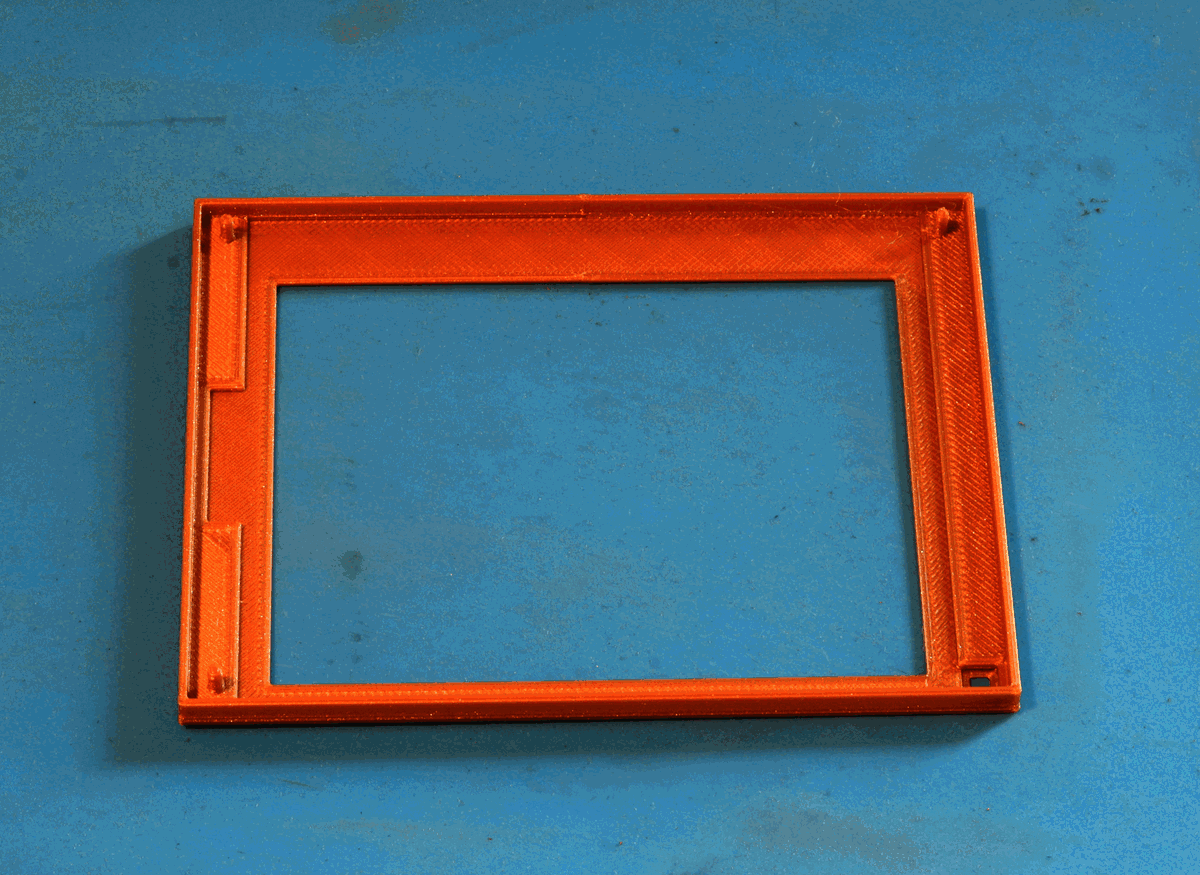

Tinta is an open source connected device published by c0de111, with its design files available on GitHub. In the maintainer's words: “Battery-powered e-paper sign: room signage, sensor graphs, home automation, or anything over Wi-Fi. Wakes by real-time clock, NFC tap, or button. Raspberry Pi Pico W firmware, custom PCB, and 3D-printed case included.”
It has 24 stars and 2 forks on GitHub, and the files were touched within the last month.
What’s in the repository
- Schematic and board source files published by the author
- A project site with further documentation
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under Apache-2.0, one of the permissive licenses. You can fork the design, change it, manufacture it and sell the result, provided you keep the original copyright and license notice with the files.
Opening it in ProtoFlow
The repository does not clearly state which EDA tool produced the files — check the repository contents before planning an import.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit c0de111 if you publish or sell what you build from it.
This page indexes a public repository. The design, the files and the copyright belong to c0de111; ProtoFlow does not host, mirror or verify them. Details are read from GitHub and refreshed periodically — check the repository for the current state of the project.
