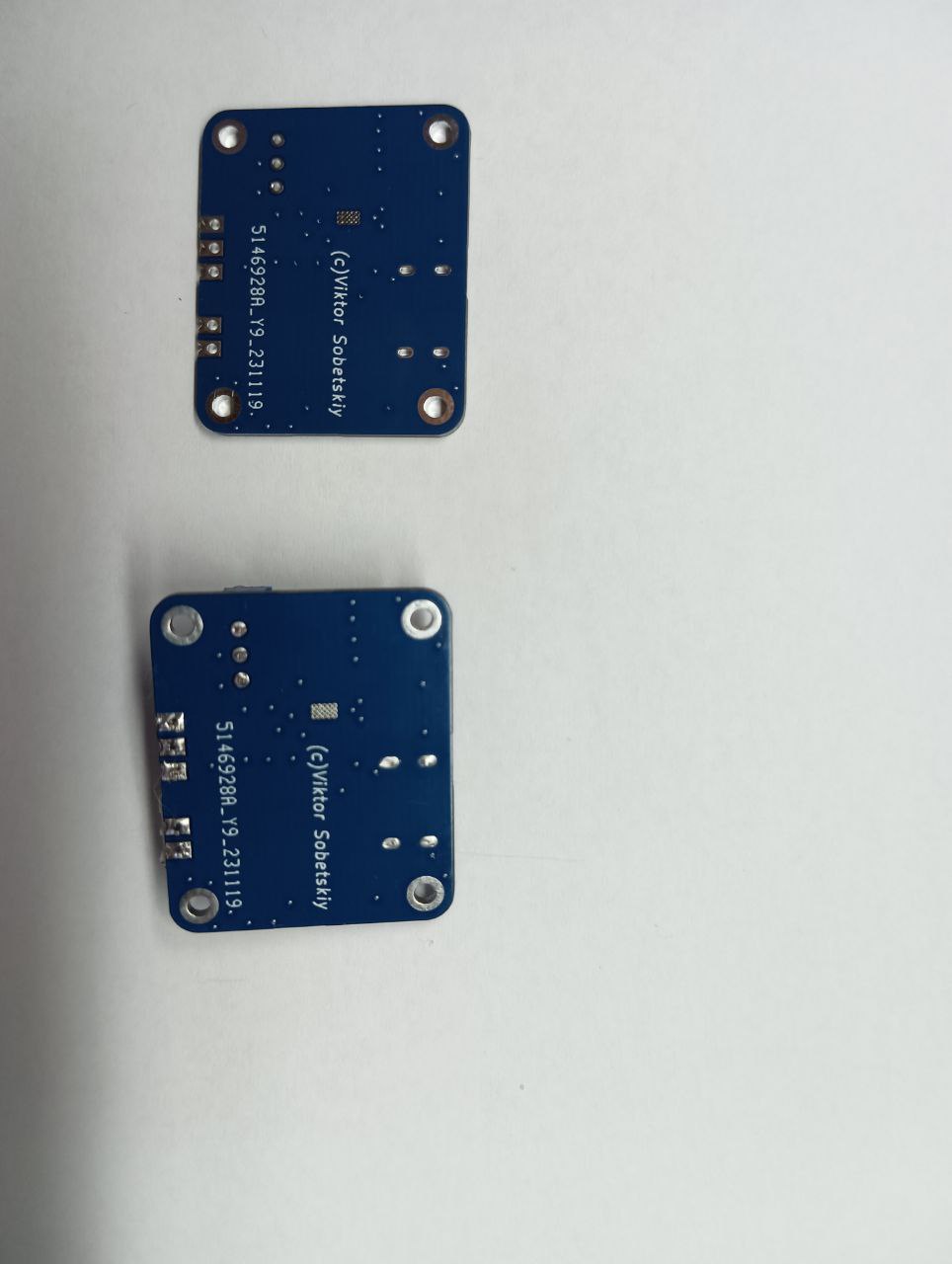

Bms Buck Boost is a community-built power board. tor1kk publishes the full KiCad project on GitHub for anyone to study or build. The project summarises itself as “Battery Management System (BMS) with Buck-Boost Converter.”
The repository has collected 9 stars and been forked 2 times, with the last commit 2 years ago.
What’s in the repository
- KiCad schematic and PCB layout source files
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under GPL-3.0, a copyleft license. You are free to fork and modify the design, but anything you distribute that is derived from it has to be published under the same terms — worth checking before it goes into a closed product.
Opening it in ProtoFlow
Select Edit in ProtoFlow for the available opening options. Download the source and open supported KiCad schematic or board files in the desktop app; check the project version and external libraries.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit tor1kk if you publish or sell what you build from it.
