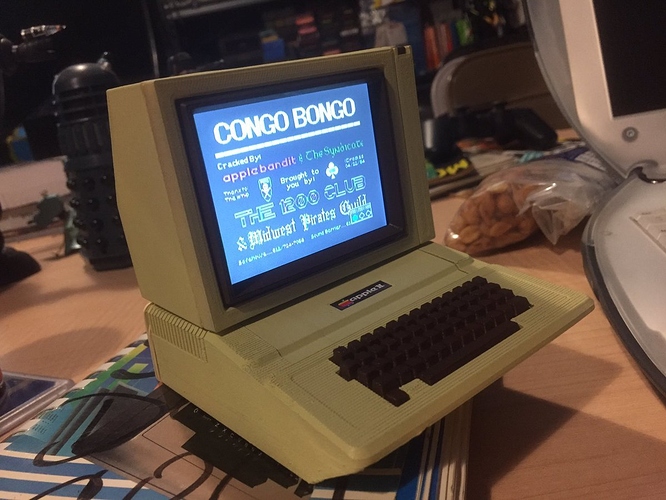

Cupcakus maintains AppleIIMini, an open hardware power board whose EAGLE source files are public on GitHub. The project summarises itself as “Apple II Mini for C.H.I.P.”
The repository has collected 137 stars and been forked 7 times, with the last commit 9 years ago.
What’s in the repository
- EAGLE schematic (.sch) and board (.brd) source files
- Full revision history, so you can see how the board changed between versions
Licence and reuse
Released under GPL-2.0, a copyleft license. You are free to fork and modify the design, but anything you distribute that is derived from it has to be published under the same terms — worth checking before it goes into a closed product.
Opening it in ProtoFlow
The design was drawn in EAGLE. EAGLE schematic and board files convert into KiCad format, which is the path to take if you want to carry this design into ProtoFlow.
- 01 Select “Edit in ProtoFlow” for opening options. Download the source and open supported KiCad files in the app. Other EDA formats may need conversion.
- 02 Work in the imported local copy: rename nets, swap parts against live distributor stock, re-route, or strip it back to the sub-circuit you actually need.
- 03 Keep the original licence and credit Cupcakus if you publish or sell what you build from it.
